Model

RS-100-5

RS-100-12

RS-100-15

RS-100-24

RS-100-36

RS-100-48

Dc output voltage

5V

12V

15V

24V

36V

48V

Rated output current

18A

8.5A

7A

4.5A

2.8A

2.3A

Output current rage

0-18A

0-8.5A

0-7A

0-4.5A

0-2.8A

0-2.3A

Rated Power

90W

102W

105W

108W

100.8W

110.4W

Wave and noise

100mVp-p

120mVp-p

120mVp-p

150mVp-p

200mVp-p

200mVp-p

Voltage ADJ. range

4.5-5.5V

10.2-13.8V

13.5-18V

21.6-28.8V

32.4-39.6V

43.2-52.8V

Voltage tolerance

±2%

±1%

±1%

±1%

±1%

±1%

Line Regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load Regulation

±1%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Efficiency

86.0%

88.0%

88.5%

90.0%

90.5%

91.0%

AC input voltage range

AC85~264V 47~63Hz;120~373VDC(Withstand 300VAC surge for 5 sec.Without damage)

Input current

1.9A/115V 1.2A/230V

AC IN rush current

Cold-start 50A/230V

Overload protection

110%~150% Protection type: Hiccp mode,recobers automatically after condition recoverd

Over-voltage protection

5.75-6.75V

13.8-16.2V

18.75-21.75V

28.8-33.6V

41.4-48.6V

55.2-64.8V

Protection type :Shut down o/p voltage,re-power on to recover

Setup rise time

500ms,30ms/230VAC 500ms,30ms/115VAC at full lod

Hold up time

55ms/230VAC ,10ms/115VAC at full lod

Withstand voltage

I/P-O/P:3.75KVAC,I/P-FG:2KVAC,O/P-FG: 1.25KVAC

Isolation resistance

I/P-O/P,I/P-FG,O/P-FG:100M Ohms/ 500VDC /25°C/70%RH

Working temperature

-30°C~+70°C

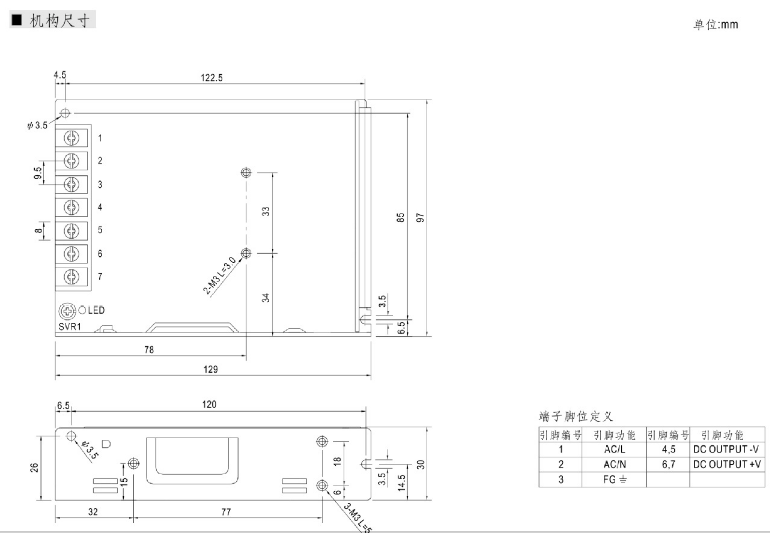

Overall dimension

129*97*30mm

Safety standards

Meet ULGB4943 UL60950 EN60950

EMC standards

Meet EN55022,EN61000-3-2,EN61000-3-3,EN55024 GB9254 Class B

Weight

0.295Kgs
