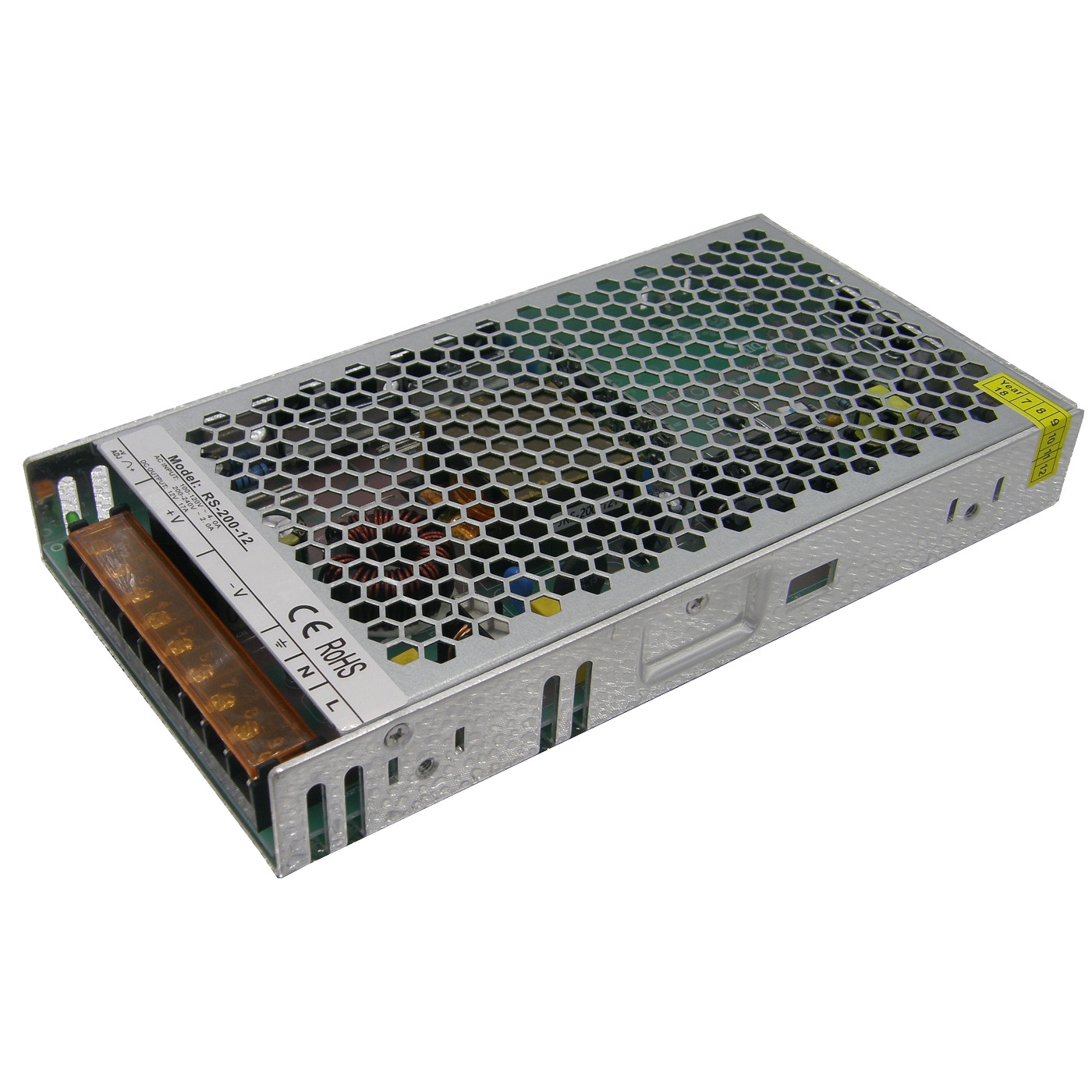

Model

RS-200-5

RS-200-12

RS-200-15

RS-200-24

RS-200-36

RS-200-48

Dc output voltage

5V

12V

15V

24V

36V

48V

Rated output current

40A

17A

14A

8.8A

5.9A

4.4A

Output current rage

0-40A

0-17A

0-14A

0-8.8A

0-5.9A

0-4.4A

Rated Power

200W

204W

210W

211.2W

212.4W

211.2W

Wave and noise

150mVp-p

150mVp-p

150mVp-p

150mVp-p

200mVp-p

200mVp-p

Voltage ADJ. range

4.5-5.5V

10.2-13.8V

13.5-18V

21.6-28.8V

32.4-39.6V

43.2-52.8V

Voltage tolerance

±3%

±1.5%

±1%

±1%

±1%

±1%

Line Regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load Regulation

±2%

±1%

±0.5%

±0.5%

±0.5%

±0.5%

Efficiency

86.0%

88.0%

88.5%

90.0%

90.5%

91.0%

AC input voltage range

AC85~132AC/170~264V By switch 47~63Hz; 240~370VDC (Switch on 230VAC)

Input current

4A/115V 2.2A/230V

AC INnrush current

Cold-start 60A/115V,60A/230V

Overload proctection

110%~140% Potection type: Hiccp mode,recobers automatically after condition recoverd

Over-voltage protection

5.75-6.75V

13.8-16.2V

18.75-21.75V

28.8-33.6V

41.4-48.6V

55.2-64.8V

Potection type :Shut down o/p voltage,re-power on to recover

Setup rise time

1300ms,50ms/230VAC 1300ms,50ms/115VAC at full lod

Hold up time

16ms/230VAC ,12ms/115VAC at full lod

Withstand voltage

I/P-O/P:3.75KVAC,I/P-FG:2KVAC,O/P-FG: 1.25KVAC

Isolation resistance

I/P-O/P,I/P-FG,O/P-FG:100M Ohms/ 500VDC /25°C/70%RH

Working temperature

-30°C~+70°C

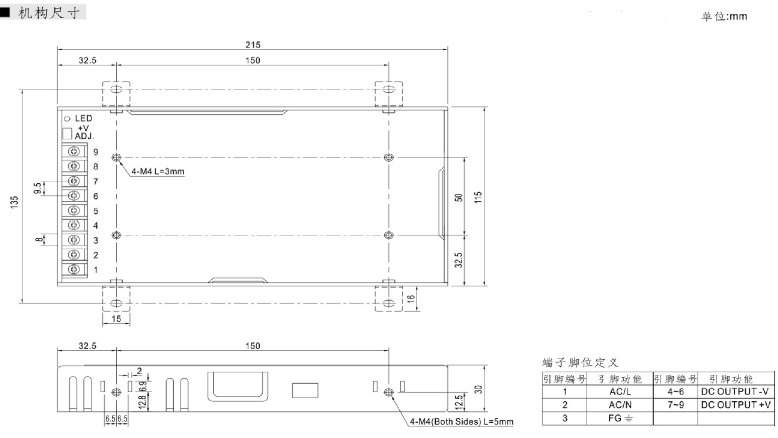

Overall dimension

215*115*30mm

Safety standards

Meet ULGB4943 UL60950 EN60950

EMC standards

Meet EN55022,EN61000-3-2,EN61000-3-3,EN55024 GB9254 Class B

Weight

0.66Kgs
