Product Introduction
Features:
1.Universal AC input/Full range
2.Protection:Short circuit/Overload/Over voltage
3.Cooling by free air convection
4.High efficiency , long life and high reliability
5.100% full load burn-in test
6.High operating temperature up to 60℃
7.Withstand 300VAC surge input for 5 second
8. No load power consumption<0.2W
9. Operating altitude up to 5000 meters
10. LED indicator for power on
11. 2 years warranty
|
Model |
RS-150-12 |
RS-150-15 |
RS-150-24 |
RS-150-36 |
RS-150-48 |
|
Dc output voltage |
12V |
15V |
24V |
36V |
48V |
|
Rated output current |
12.5A |
10A |
6.5A |
4.3A |
3.3A |
|
Output current rage |
0-12.5A |
0-10A |
0-6.5A |
0-4.3A |
0-3.3A |
|
Rated Power |
150W |
150W |
156W |
154.8W |
158.4W |
|
Wave and noise |
150mVp-p |
150mVp-p |
200mVp-p |
200mVp-p |
200mVp-p |
|
Voltage ADJ. range |
10.2-13.8V |
13.5-18V |
21.6-28.8V |
32.4-39.6V |
43.2-52.8V |
|
Voltage tolerance |
±1% |
±1% |
±1% |
±1% |
±1% |
|
Line Regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Load Regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Efficiency |
87.5% |
88.5% |
89.0% |
89.0% |
90.0% |
|
AC input voltage range |
AC85~132AC/170~264V By switch 47~63Hz; 240~370VDC (Switch on 230VAC) |
||||
|
Input current |
2.8A/115V 1.6A/230V |
||||
|
AC IN rush current |
Cold-start 60A/230V |
||||
|
Overload protection |
110%~140% Protection type: Hiccp mode,recobers automatically after condition recoverd |
||||
|
Over-voltage protection |
13.8-16.2V |
18.75-21.75V |
28.8-33.6V |
41.4-48.6V |
55.2-64.8V |
|
Protection type :Shut down o/p voltage,re-power on to recover |
|||||
|
Setup rise time |
500ms,30ms/230VAC 500ms,30ms/115VAC at full lod |
||||
|
Hold up time |
40ms/230VAC ,35ms/115VAC at full lod |
||||
|
Withstand voltage |
I/P-O/P:3.75KVAC,I/P-FG:2KVAC,O/P-FG: 1.25KVAC |
||||
|
Isolation resistance |
I/P-O/P,I/P-FG,O/P-FG:100M Ohms/ 500VDC /25°C/70%RH |
||||
|
Working temperature |
-30°C~+70°C |
||||
|

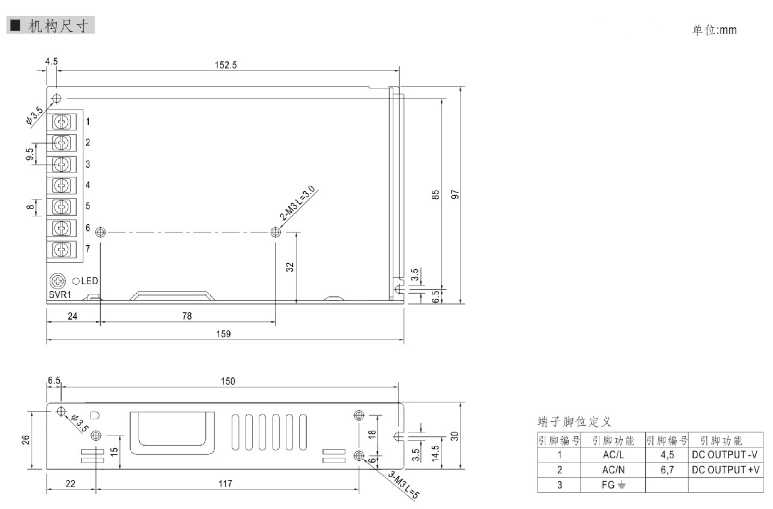

Overall dimension |
159*97*30mm |
||||
|
Safety standards |
Meet ULGB4943 UL60950 EN60950 |
||||
|
EMC standards |
Meet EN55022,EN61000-3-2,EN61000-3-3,EN55024 GB9254 Class B |
||||
|
Weight |
0.48Kgs |
||||
