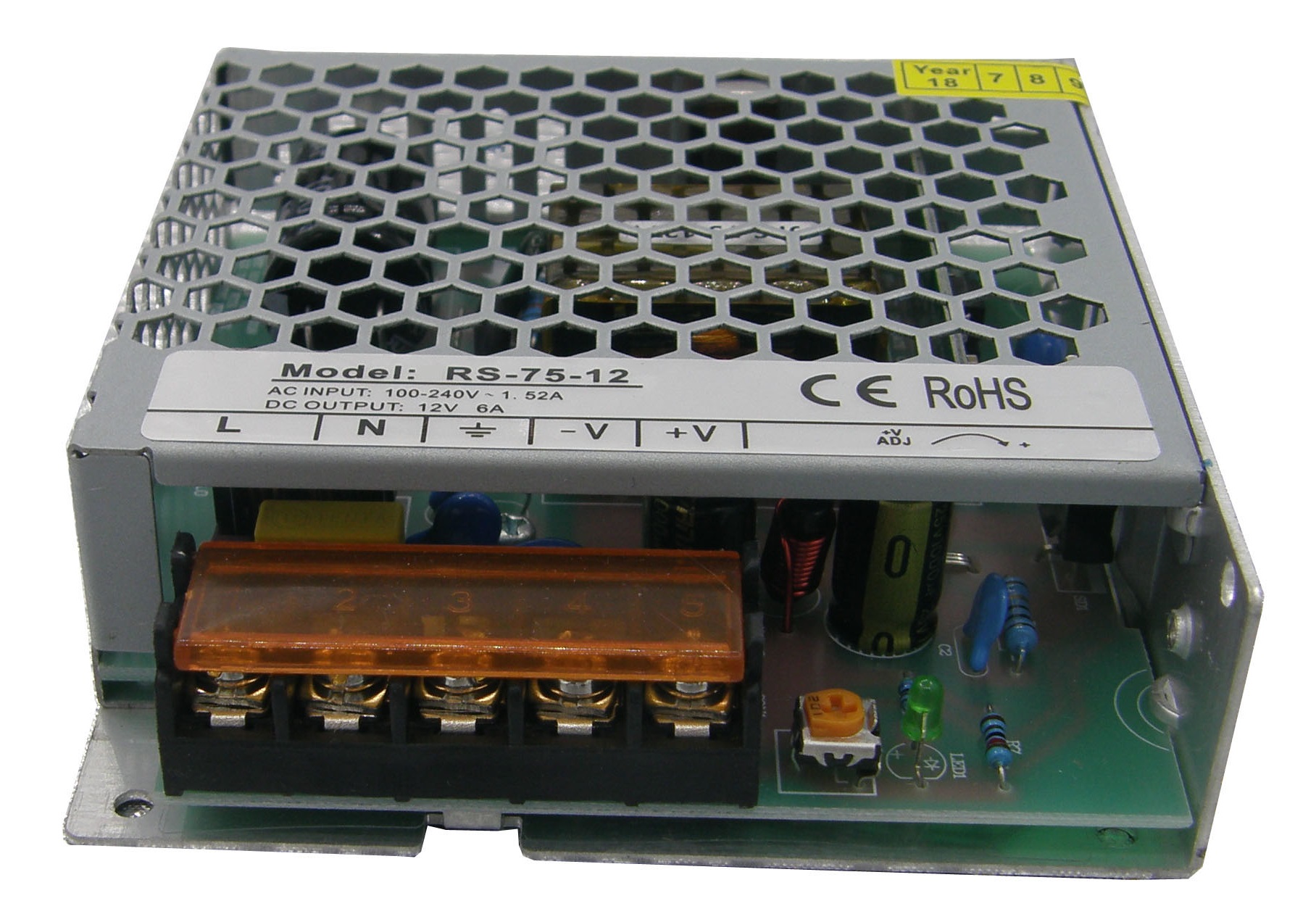

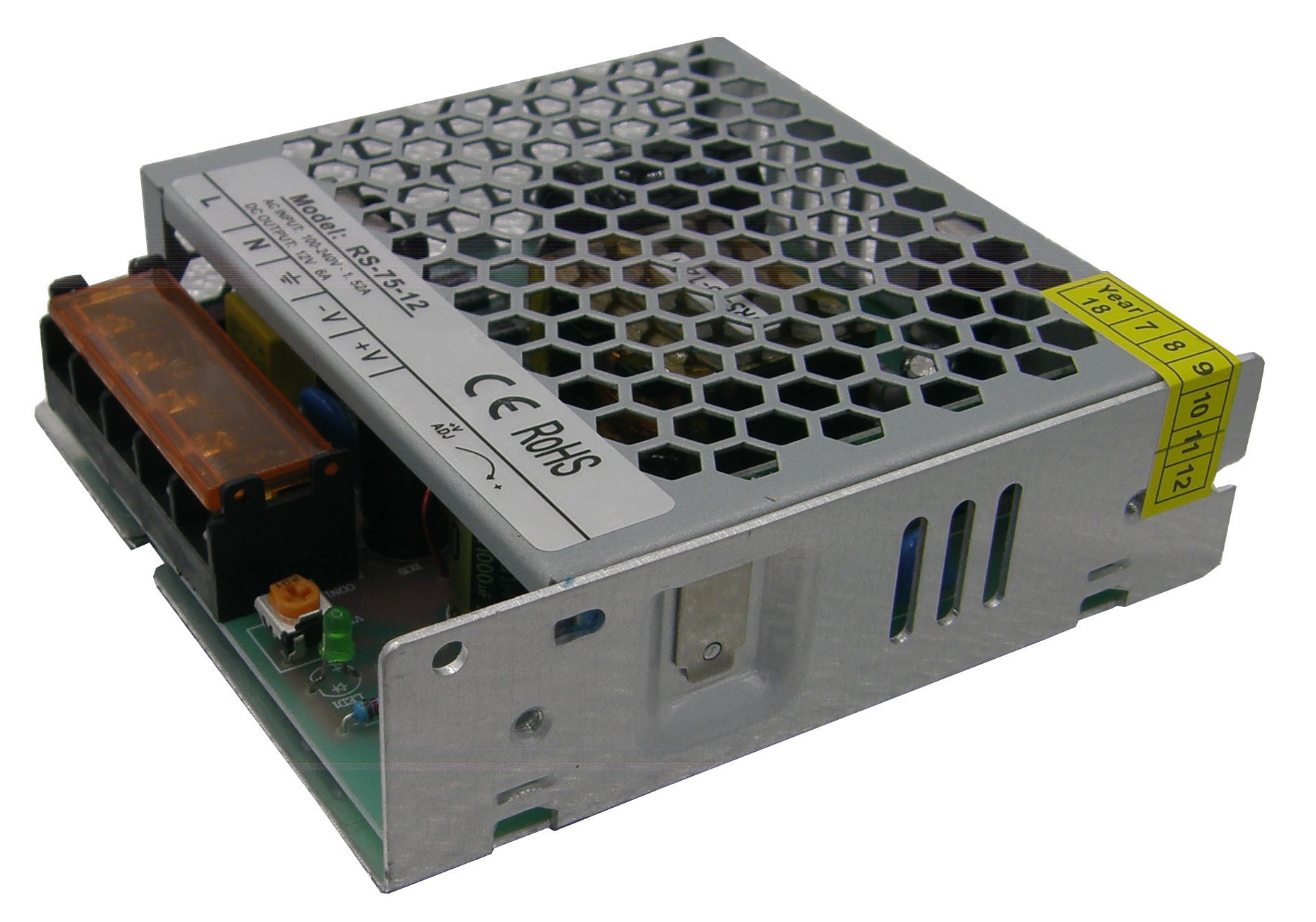

Model

RS-75-5

RS-75-12

RS-75-15

RS-75-24

RS-75-36

RS-75-48

Dc output voltage

5V

12V

15V

24V

36V

48V

Rated output current

14A

6A

5A

3.2A

2.1A

1.6A

Output current rage

0-14A

0-6A

0-5A

0-3.2A

0-2.1A

0-1.6A

Rated Power

70W

72W

75W

76.8W

75.6W

76.8W

Wave and noise

100mVp-p

120mVp-p

120mVp-p

150mVp-p

200mVp-p

200mVp-p

Voltage ADJ. range

4.5-5.5V

10.2-13.8V

13.5-18V

21.6-28.8V

32.4-39.6V

43.2-52.8V

Voltage tolerance

±2%

±1%

±1%

±1%

±1%

±1%

Line Regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load Regulation

±1%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Efficiency

86.5%

89.0%

89.0%

90.0%

91.5%

91.5%

AC input voltage range

AC85~264V 47~63Hz;120~373VDC

Input current

1.4A/115V 0.85A/230V

AC INnrush current

Cold-start 50A/230V

Overload proctection

110%~150% Potection type: Hiccp mode,recobers automatically after condition recoverd

Over-voltage protection

5.75-6.75V

13.8-16.2V

18.75-21.75V

28.8-33.6V

41.4-48.6V

55.2-64.8V

Potection type :Shut down o/p voltage,re-power on to recover

Setup rise time

500ms,30ms/230VAC 500ms,30ms/115VAC at full lod

Hold up time

60ms/230VAC ,12ms/115VAC at full lod

Withstand voltage

I/P-O/P:3.75KVAC,I/P-FG:2KVAC,O/P-FG: 1.25KVAC

Isolation resistance

I/P-O/P,I/P-FG,O/P-FG:100M Ohms/ 500VDC /25°C/70%RH

Working temperature

-30°C~+70°C

Overall dimension

104*97*30mm

Safety standards

Meet ULGB4943 UL60950 EN60950

EMC standards

Meet EN55022,EN61000-3-2,EN61000-3-3,EN55024 GB9254 Class B

Weight

0.3Kgs
