Product Introduction
Specifications:
1. CE ROHS approved
2. AC85-264V input
3.2 years warranty
Notice:
a.We do have enough ability to produce your customized order
b.Samples are available
c.High quality and competive price .
d.2 years warrenty ,buy with confidence
Specification:
|
Model |

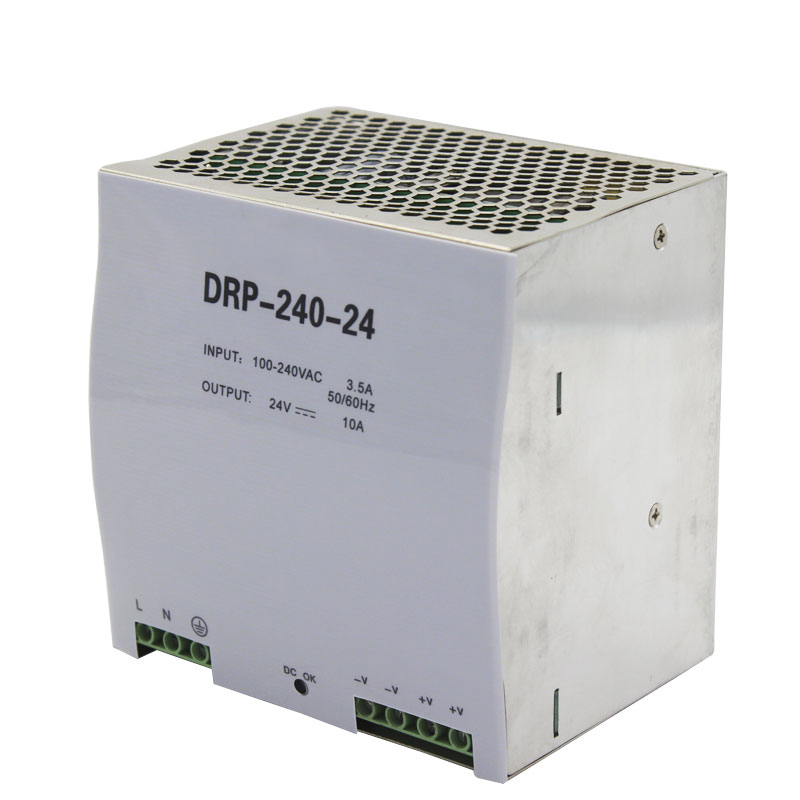

DRP-240-24 |
DRP-240-48 |
|
DC output voltage |
24V |
48V |
|
Output voltage range(Note:2) |
±1% |
±1% |
|
Rated output current |
10A |
5A |
|
Output current range |
0-10A |
0-5A |
|
Wave and noise(Note:3) |
80mVp-p |
150mVp-p |
|
Inlet stability(Note:4) |
±0.5% |
±0.5% |
|
Load stability(Note:5) |
±1% |
±1% |
|
DC output power |
240W |
240W |
|
Efficiency |
84% |
85% |
|
Adjustable range for DC voltage |
21.6~26.4V |
43.2~52.8V% |
|
AC input voltage range |
88~264VAC 47~63Hz;120~370VDC |
|
|
Input current |
3.5A/115V 1.8A/230V |
|
|
AC inrush current |
Cold-start current 30A/115V 60A/230V |
|
|
Leakage current |
<3.5mA/240VAC |
|
|
Overload protection |
105%~150% Type: pulsing hiccup shutdown Reset: tuto recovery |
|
|
Over-voltage protection |
30~34V |
54~60V |
|
High-temperature protection |
100°c±5°c(TSW1) |
|
|
Temperature coefficient |
±0.03%/°c(0~50°c) |
|
|
Setup, rise , hold up time |
800ms, 40ms,20ms/230VAC 800ms, 40ms, 20ms/115VAC |
|
|
Vibration |
10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes |
|
|
Withstand voltage |
Input and output internal: Input and encolsur: 1.5KvAC, Output and enclosure: 0.5KvAC |
|
|
Isolation resistance |
Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ |
|
|
Working temperature and humidity |
-10°c~+60°c(Refer to output derating curve), 20%~90%RH |
|
|
Overall dimension |
125.5×125.2×100m |
|
|
Weight |
1.2Kgs 20PCS/14Kg/1.1CUFT |
|
|
Safety standards |
Meet UL 1012 requirement (Not apply for the mark) |
|
|
EMC standards |
Meet FCC PART 15 J Conduction class B |
|
