Product Introduction
Specifications:

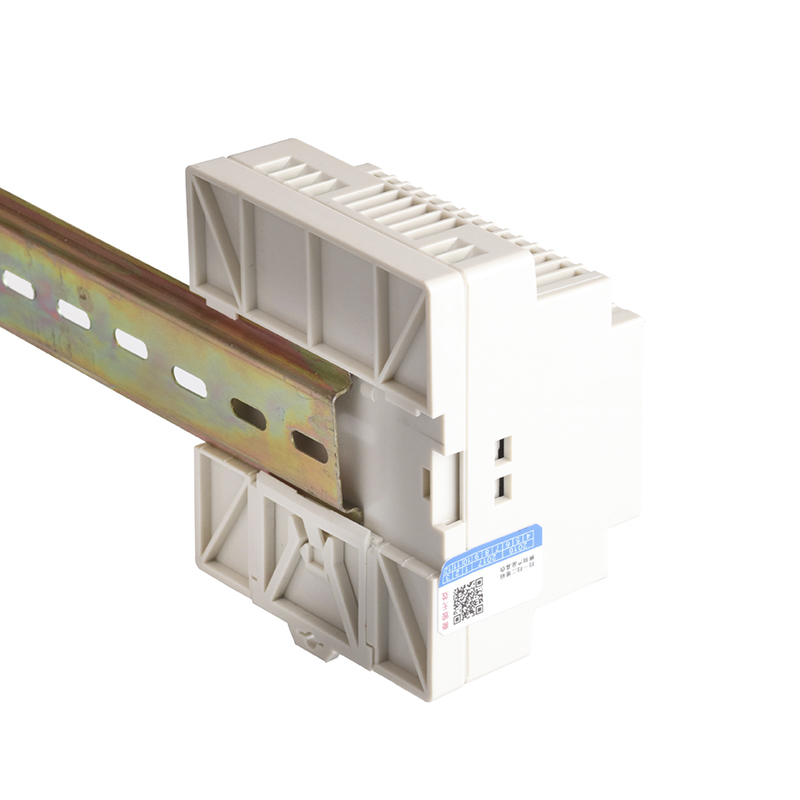

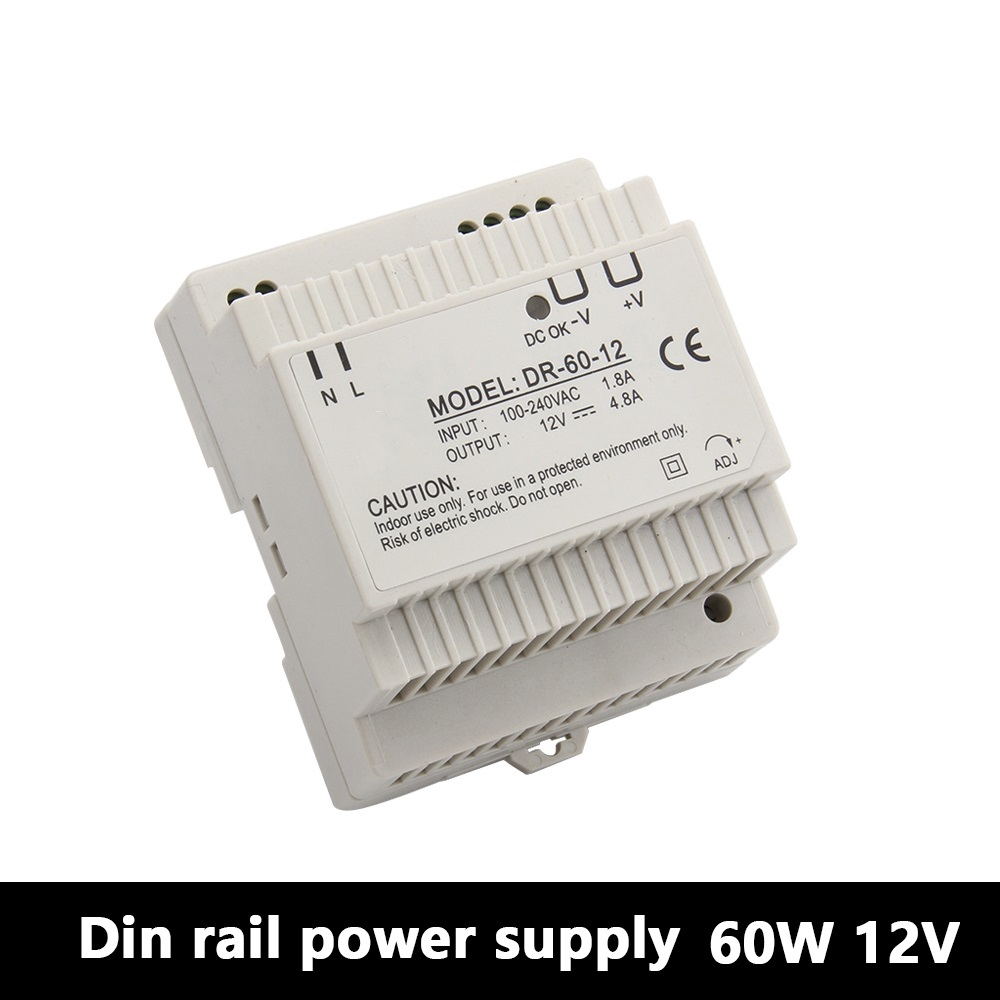

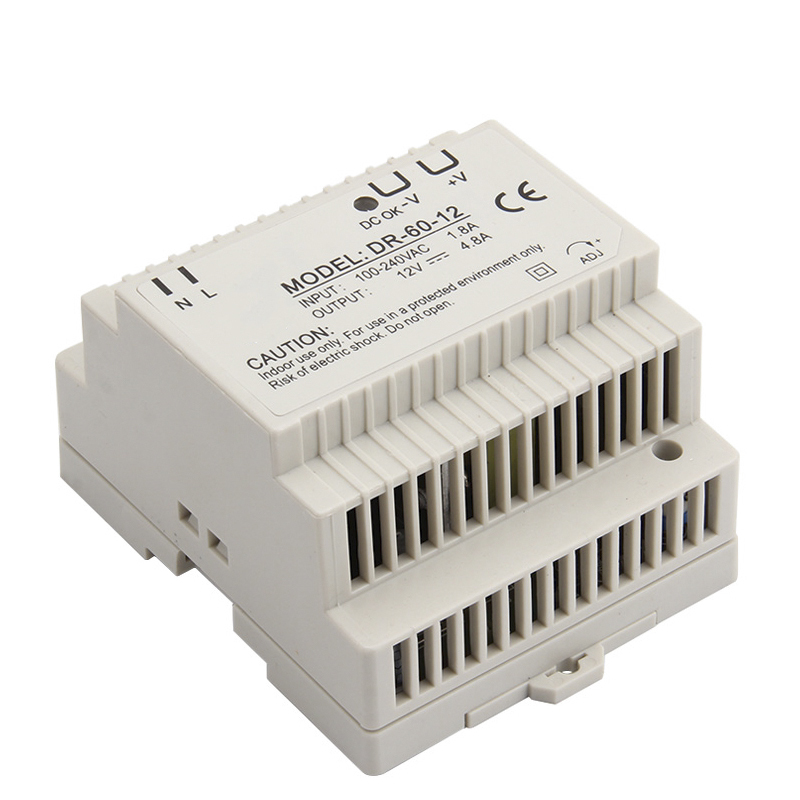

din-rail switching power supply dr-60
1 CE ROHS approved
2. AC85-264V Input
3.2 years warranty
din-rail switching power supply dr-60
Notice:
a.We do have enough ability to produce your customized order
b.Samples are available
c.High quality and competive price .
d. warrenty ,buy with confidence
1.din-rail switching power supply dr-60 Features:
General Specification :
|
MODEL |
DR-60-5 |
DR-60-12 |
DR-60-15 |
DR-60-24 |
|
|
OUTPUT |
DC VOLTAGE |
5V |
12V |
15V |
24V |
|
RATED CURRENT |
12A |
4.5A |
4A |
2.5A |
|
|
CURRENT RANGE |
0 ~ 12A |
0 ~ 4.5A |
0 ~4A |
0 ~ 2.5A |
|
|
RATED POWER |
60W |
54W |
60W |
60W |
|
|
RIPPLE & NOISE (max.) Note.2 |
80mVp-p |
120mVp-p |
120mVp-p |
150mVp-p |
|
|
VOLTAGE ADJ.RANGE |
4.75 ~ 5.5V |
10.8 ~ 13.2V |
13.5 ~ 16.5V |
21.6 ~ 26.4V |
|
|
VOLTAGE TOLERANCE Note.3 |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
LINE REGULATION |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
LOAD REGULATION |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
SETUP, RISE TIME |
100ms, 30ms/230VAC 200ms, 30ms/115VAC at full load |
||||
|
HOLD TIME(Typ.) |
100ms/230VAC 23ms/115VAC at full load |
||||
|
INPUT |
VOLTAGE RANGE |
88 ~ 264VAC 124 ~ 370VDC |
|||
|
FREQUENCY RANGE |
47 ~ 63Hz |
||||
|
EFFICIENCY (Typ.) |
76% |
82% |
83% |
84% |
|
|
AC CURRENT |
1.2A/115VAC 0.8A/230VAC |
||||
|
INRUSH CURRENT(max.) |
COLD START 18A/115VAC 36A/230VAC |
||||
|
PROTECTION |
OVERLOAD |
105 ~ 160% rated output power |
|||
|
Protection type: Constant current limiting, recovers automatically after fault condition is removed |
|||||
|
OVER VOLTAGE |
5.75 ~ 6.75V |
13.8 ~ 16.2V |
17.25 ~ 20.25V |
27.6 ~ 32.4V |
|
|
Protection type: Shut down o/p voltage, re-power on to recover |
|||||
|
ENVIRONMENT |
WORKING TEMP. |
-20 ~ +60ºC |
|||
|
WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
||||
|
STORAGE TEMP., HUMIDITY |
-40 ~ +85ºC, 10 ~ 95% RH |
||||
|
TEMP. COEFFICIENT |
±0.03%/ºC (0 ~ 50ºC) |
||||
|
VIBRATION |
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
||||
|
SAFETY & EMC (Note 4) |
SAFETY STANDARDS |
Design refer to UL60950-1, TUV EN60950-1, EN50178 |
|||
|
WITHSTAND VOLTAGE |
I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
||||
|
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC |
||||
|
EMI CONDUCTION & RADIATION |
Compliance to EN55022 (CISPR22) Class B |
||||
|
HARMONIC CURRENT |
Compliance to EN61000-3-2,-3 |
||||
|
EMS IMMUNITY |
Compliance to EN61000-4-2, 3, 4, 5; ENV50204, EN55024, Light industry level, criteria A |
||||
|
OTHERS |
MTBF |
216.2K hrs min. MIL-HDBK-217F (25ºC) |
|||
|

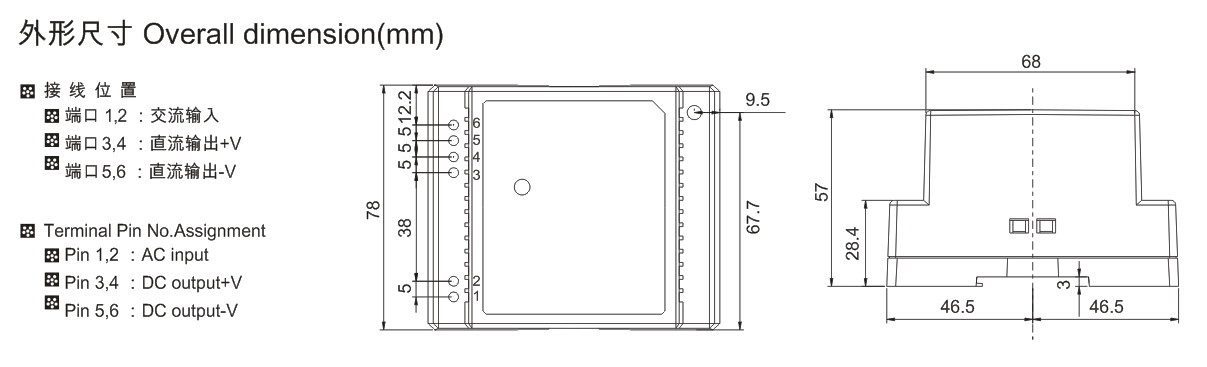

DIMENSION |
78*93*56mm (L*W*H) |
||||
|
PACKING |
0.3Kg; 45pcs/13.5Kg/1.02CUFT |
||||
