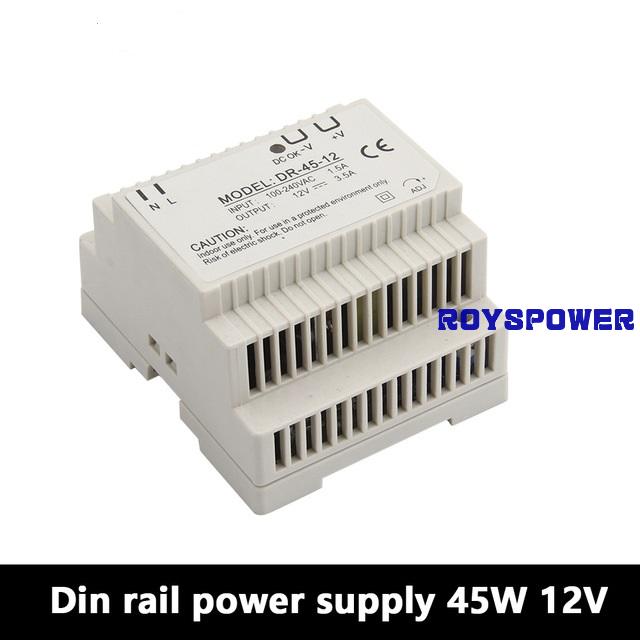

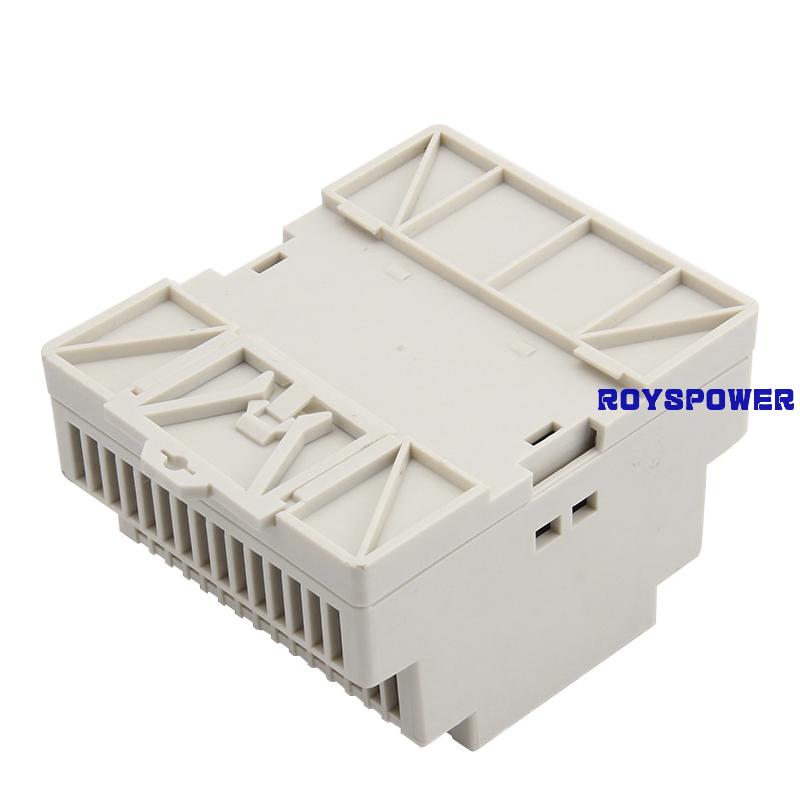

Product Introduction
Specifications:
1. CE ROHS approved
2. AC85-264V input
3.2 years warranty
Notice:
a.We do have enough ability to produce your customized order
b.Samples are available
c.High quality and competive price .
d.2 years warrenty ,buy with confidence
Specification:
|
MODEL |
DR-45-5 |
DR-45-12 |
DR-45-15 |
DR-45-24 |
|
|
OUTPUT |
DC VOLTAGE |
5V |
12V |
15V |
24V |
|
RATED CURRENT |
9A |
3.5A |
3A |
2A |
|
|
CURRENT RANGE |
0 ~ 9A |
0 ~ 3.5A |
0 ~3A |
0 ~ 2A |
|
|
RATED POWER |
45W |
45W |
45W |
45W |
|
|
RIPPLE & NOISE (max.) |
80mVp-p |
120mVp-p |
120mVp-p |
150mVp-p |
|
|
VOLTAGE ADJ.RANGE |
4.75 ~ 5.5V |
10.8 ~ 13.2V |
13.5 ~ 16.5V |
21.6 ~ 26.4V |
|
|
VOLTAGE TOLERANCE |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
LINE REGULATION |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
LOAD REGULATION |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
SETUP, RISE TIME |
100ms, 30ms/230VAC 100ms, 30ms/115VAC at full load |
||||
|
HOLD TIME(Typ.) |
100ms/230VAC 30ms/115VAC at full load |
||||
|
INPUT |
VOLTAGE RANGE |
85 ~ 264VAC 120 ~ 370VDC |
|||
|
FREQUENCY RANGE |
47 ~ 63Hz |
||||
|
EFFICIENCY (Typ.) |
74% |
81% |
82% |
83% |
|
|
AC CURRENT |
0.88A/115VAC 0.48A/230VAC |
||||
|
INRUSH CURRENT(max.) |
COLD START 15A/115VAC 30A/230VAC |
||||
|
PROTECTION |
OVERLOAD |
105 ~ 160% rated output power |
|||
|
Protection type : Constant current limiting,recovers automatically after fault condition is removed |
|||||
|
OVER VOLTAGE |
5.75 ~ 6.75V |
13.8 ~ 16.2V |
17.25 ~ 20.25V |
27.6 ~ 32.4V |
|
|
Protection type : Shut down o/p voltage,re-power on to recover |
|||||
|
ENVIRONMENT |
WORKING TEMP. |
-20 ~ +60ºC (Refer to output load derating curve) |
|||
|
WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
||||
|
STORAGE TEMP., HUMIDITY |
-20 ~ +85ºC , 10 ~ 95% RH |
||||
|
TEMP. COEFFICIENT |
±0.03%/ºC (0 ~ 50ºC) |
||||
|
VIBRATION |
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
||||
|
SAFETY & EMC |
SAFETY STANDARDS |
Design refer to UL60950-1,TUV EN60950-1,EN50178 |
|||
|
WITHSTAND VOLTAGE |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
||||
|
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |
||||
|
EMI CONDUCTION & RADIATION |
Compliance to EN55022 (CISPR22) Class B |
||||
|
HARMONIC CURRENT |
Compliance to EN61000-3-2,-3 |
||||
|
EMS IMMUNITY |
Compliance to EN61000-4-2,3,4,5; ENV50204, EN55024, Light industry level, criteria A |
||||
|
OTHERS |
MTBF |
441.5K hrs min. MIL-HDBK-217F (25ºC) |
|||
|

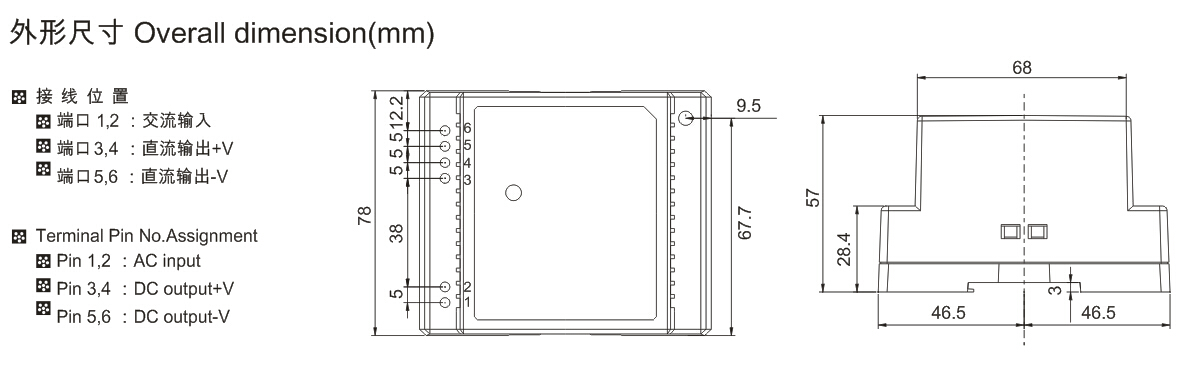

DIMENSION |
93*78*67mm (L*W*H) |
||||
|
PACKING |
0.31Kg; 48pcs/16.1Kg/1.3CUFT |
||||
