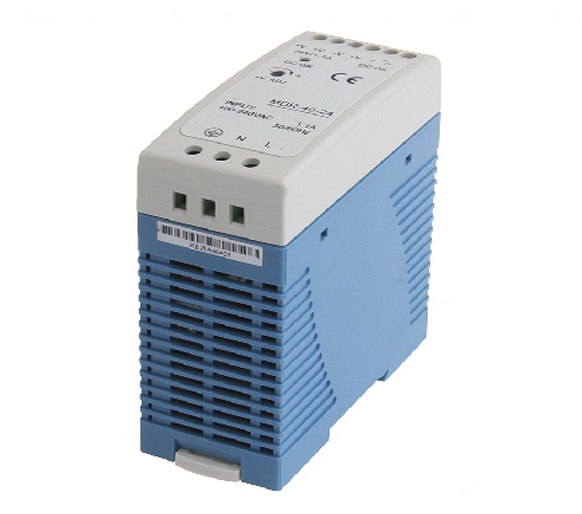

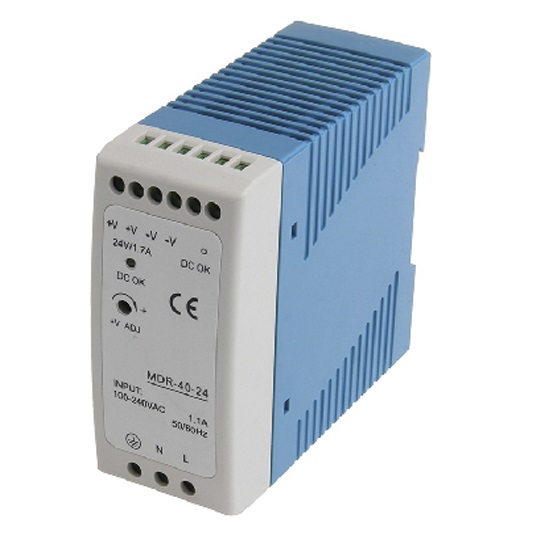

Product Introduction
Product Description
Features :
Universal AC input/Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection

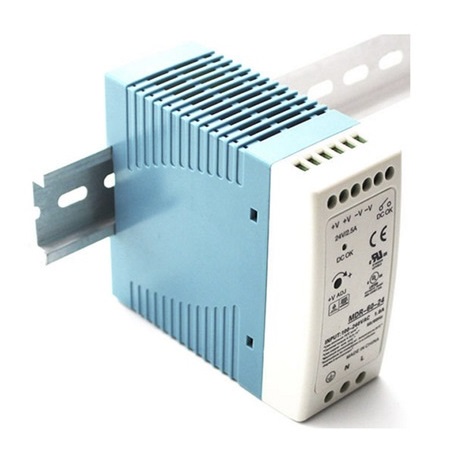

Can be installed on DIN rail TS-35/7.5 or 15
LED indicator for power on
DC OK relay contact
100% full load burn-in test
|
MODEL |
MDR-40-5 |
MDR-40-12 |
MDR-40-24 |
MDR-40-48 |
|
|
OUTPUT
|
DC VOLTAGE |
5V |
12V |
24V |
48V |
|
RATED CURRENT |
6A |
3.33A |
1.7A |
0.83A |
|
|
CURRENT RANGE |
0~6A |
0-3.33A |
0 ~ 1.7A |
0 ~ 0.83A |
|
|
RATED POWER |
30W |
40W |
40.8W |
39.8W |
|
|
RIPPLE & NOISE (max.) |
80mVp-p |
120mVp-p |
150mVp-p |
200mVp-p |
|
|
VOLTAGE ADJ. RANGE |
5-6V |
12 ~ 15V |
24 - 30V |
48 - 56V |
|
|
VOLTAGE TOLERANCE |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
LINE REGULATION |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
LOAD REGULATION |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
SETUP, RISE TIME |
500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load |
||||
|
HOLD UP TIME (Typ.) |
50ms/230VAC 20ms/115VAC at full load |
||||
|
INPUT
|
VOLTAGE RANGE |
85 ~ 264VAC 120-370VDC |
|||
|
FREQUENCY RANGE |
47~63Hz |
||||
|
EFFICIENCY (Typ.) |
78% |
86% |
88% |
88% |
|
|
AC CURRENT (Typ.) |
1.1 A/115 VAC 0.7A/230VAC |
||||
|
INRUSH CURRENT (Typ.) |
COLD START 30A/115VAC,60A/230VAC |
||||
|
LEAKAGE CURRENT |
<1mA/240VAC |
||||
|
PROTECTION
|
OVERLOAD |
105 ~ 150% rated output power |
|||
|
Protection type: Constant current limiting, recovers automatically after fault condition is removed |
|||||
|
OVERVOLTAGE |
6.25 - 7.25V |
15.6 -18V |
31.2-36V |
57.6-64.8V |
|
|
Protection type : Shut down o/p voltage, re-power on to recover |
|||||
|
FUNCTION |
DC OK SIGNAL |
Relay contact rating{max.): 30V/1A resistive |
|||
|
ENVIRONMENT
|
WORKING TEMP. |
-20 ~ +70"C (Refer to "Derating Curve") |
|||
|
WORKING HUMIDITY |
20 - 90% RH non-condensing |
||||
|
STORAGE TEMP, HUMIDITY |
-40 ~ +85°C, 10 ~ 95% RH |
||||
|
TEMP. COEFFICIENT |
±0.03%/°C (0 ~50°C) |
||||
|
VIBRATION |
Component: 10 - 500Hz, 2G 10min./1 cycle, period for60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 |
||||
|
OTHERS
|
MTBF |
301.7K hrs min. MIL-HDBK-217F (25°C) |
|||
|

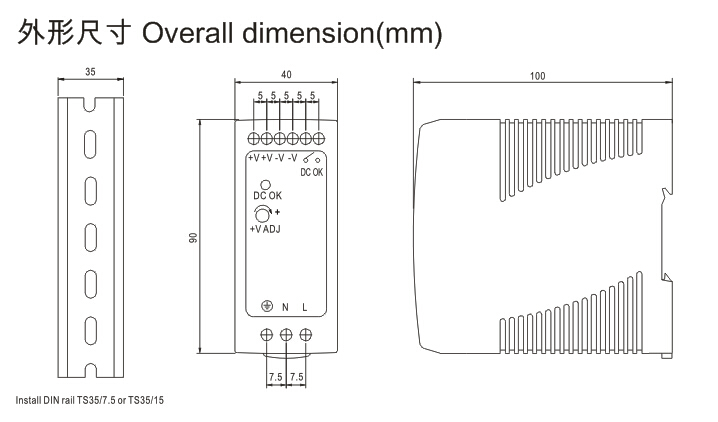

DIMENSION |
40*90*100mm (W*H*D) |
||||
|
PACKING |
0.3Kg; 42pcs/13.6Kg/0.82CUFT |
||||
