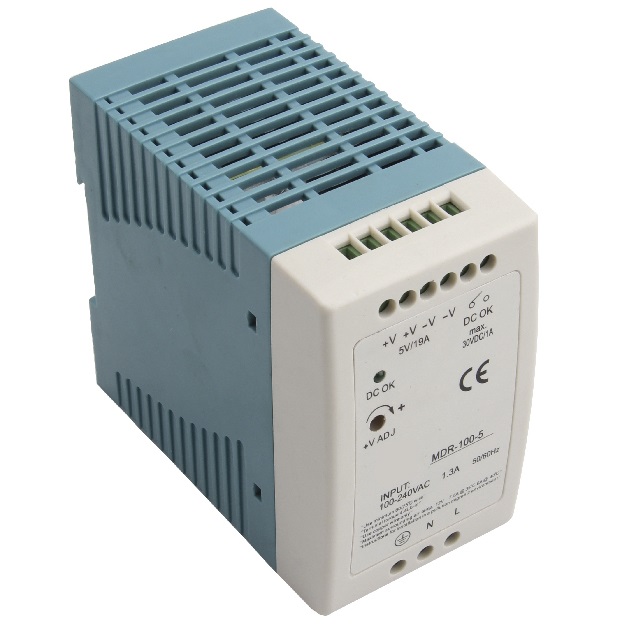

MODEL

MDR-100-12

MDR-100-24

MDR-100-48

    OUTPUT

DC VOLTAGE

12V

24V

48V

RATED CURRENT

8.3A

4A

2A

CURRENT RANGE

0-8.3A

 0~4A

 0~2A

RATED POWER

99.6W

96W

96W

RIPPLE & NOISE (max.)

120mVp-p

150mVp-p

200mVp-p

VOLTAGE ADJ. RANGE

 12~15V

24 - 30V

48 -56V

VOLTAGE TOLERANCE

±1.0%

±1.0%

±1.0%

LINE REGULATION

±1.0%

±1.0%

±1.0%

LOAD REGULATION

±1.0%

±1.0%

±1.0%

SETUP, RISE TIME

3000ms, 50ms/230VAC 3000ms, 50ms/115VAC at full load

HOLD UP TIME (Typ.)

50ms/230VAC 20ms/115VAC at full load

     INPUT

VOLTAGE RANGE

85 - 264VAC 120-370VDC

FREQUENCY RANGE

47-63HZ

POWER FACTOR (Typ.)

PFS0.95/230VAC PFS0.98/115VAC at full load

EFFICIENCY (Typ.)

85%

86%

88%

AC CURRENT (Typ.)

1.3A/115VAC 0.8A/230VAC

INRUSH CURRENT (Typ.)

COLD START 30A/115VAC 60A/230VAC

LEAKAGE CURRENT

<1mA/240VAC

 PROTECTION

OVERLOAD

105 ~ 150% rated output power

Protection type : Constant current limiting, recovers automatically after fault condition is removed

OVERVOLTAGE

15.6-18V

31.2- 36V

57.6-64.8V

Protection type : Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE

Shut down o/p voltage, auto-recovery or re-power on to recover

  FUNCTION

DC OK SIGNAL

Relay contact rating(max.): 30V/1A resistive

ENVIRONMENT

WORKING TEMP.

-10 - +60°C (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +85°C, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/°C (0~50*’C)

VIBRATION

Component: 10 - 500Hz, 2G 10min./1 cycle, period for60min. each along X, Y, Zaxes; Mounting : Compliance to IEC60068-2-6

    OTHERS

MTBF

346Khrsmin. MIL-HDBK-217F(25°C)

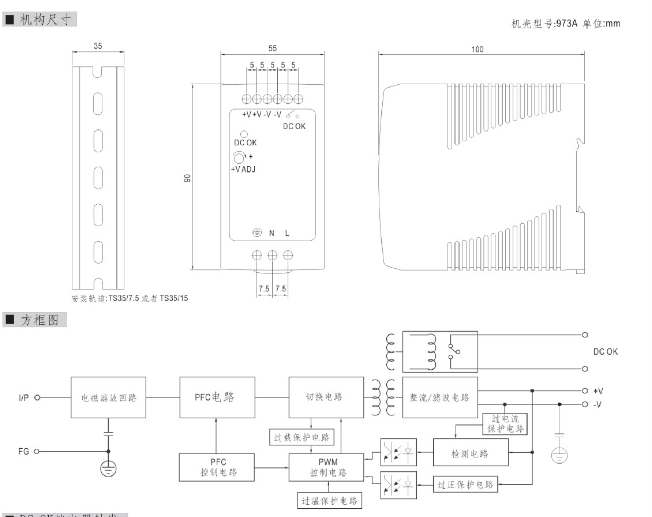

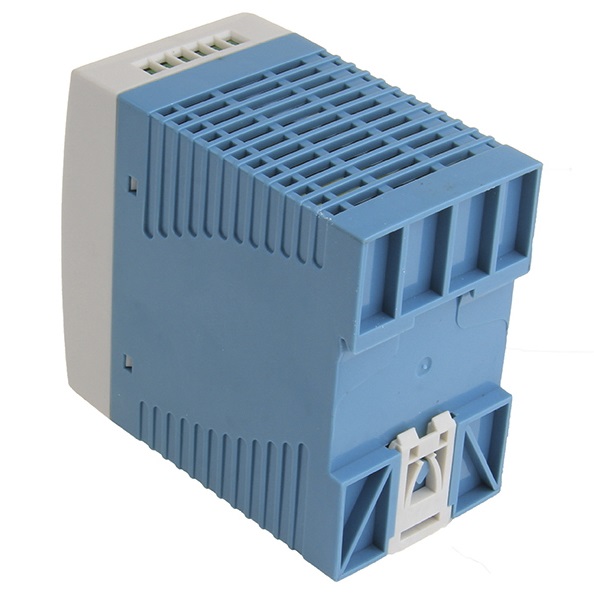

DIMENSION

55*90*100mm (W*H*D)

PACKING

0.42Kg; 30pcs/16.6Kg/0.82CUFT
