Product Introduction

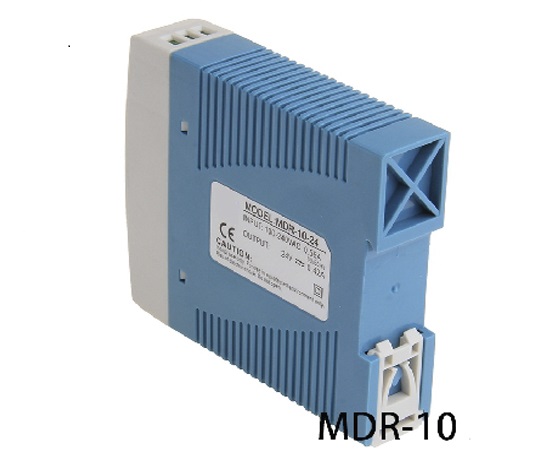

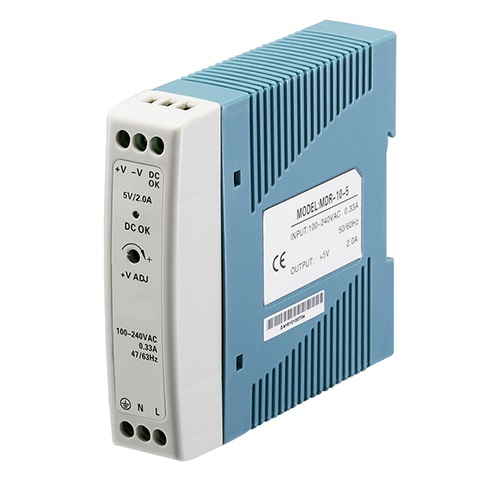

Product Description
Features :
Universal AC input/Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection

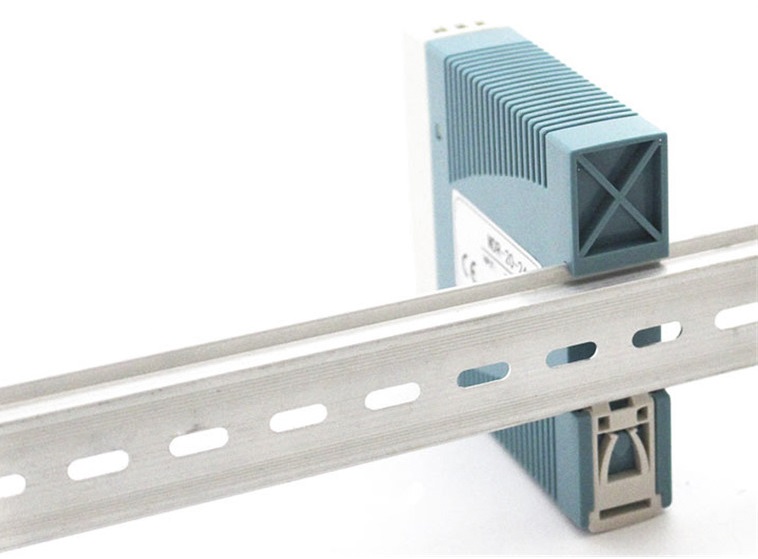

Can be installed on DIN rail TS-35/7.5 or 15
Built in DC OK active signal
LED indicator for power on
100% full load burn-in test
|
MODEL |
MDR-10-5 |
MDR-10-12 |
MDR-10-15 |
MDR-10-24 |
|
|
OUTPUT |
DC VOLTAGE |
5V |
12V |
15V |
24V |
|
RATED CURRENT |
2A |
0.84A |
0.67A |
0.42A |
|
|
CURRENT RANGE |
0~2A |
0-0.84A |
0-0.67A |
0-0.42A |
|
|
RATED POWER |
10W |
10W |
10W |
10W |
|
|
RIPPLE & NOISE (max.) |
80mVp-p |
120mVp-p |
120mVp-p |
150mVp-p |
|
|
VOLTAGE TOLERANCE |
±5.0% |
±3.0% |
±3.0% |
±2.0% |
|
|
LINE REGULATION |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
LOAD REGULATION |
±5.0% |
±3.0% |
±3.0% |
±2.0% |
|
|
SETUP, RISE TIME Note.5 |
500ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load |
||||
|
HOLD UP TIME (Typ.) |
120ms/230VAC 25ms/115VAC at full load |
||||
|
INPUT |
VOLTAGE RANGE |
85 ~ 264VAC 120-370VDC |
|||
|
FREQUENCY RANGE |
47 ~ 63Hz |
||||
|
EFFICIENCY (Typ.) |
77% |
81% |
81% |
84% |
|
|
AC CURRENT (Typ.) |
0.33A/115VAC 0.21A/230VAC |
||||
|
INRUSH CURRENT (Typ.) |
COLD START 35A/115VAC 70A/230VAC |
||||
|
LEAKAGE CURRENT |
<1mA/240VAC |
||||
|
PROTECTION |
OVERLOAD |
Above 105% rated output power |
|||
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
|||||
|
OVERVOLTAGE |
5.75-6.75V |
13.8-16.2V |
17.25-20.25V |
27.6-32.4V |
|
|
Protection type: Shut down o/p voltage, re-power on to recover |
|||||
|
FUNCTION |
DC OK ACTIVE SIGNAL (max.) |
3.75 ~6V/ 50mA |
9 - 13.5V/40mA |
11.5-16.5V/40mA |
18-27V/20mA |
|
ENVIRONMENT |
WORKING TEMP. |
-20 ~ +70°C (Refer to "Derating Curve") |
|||
|
WORKING HUMIDITY |
20 - 90% RH non-condensing |
||||
|
STORAGE TEMP., HUMIDITY |
-40 ~ +85°C ,10- 95% RH |
||||
|
TEMP. COEFFICIENT |
±0.03%/°C (0 - 50°C) |
||||
|
VIBRATION |
Component: 10 - 500Hz, 2G10min./1 cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 |
||||
|
OTHERS |
MTBF |
584Khrsmin. MIL-HDBK-217F (25°C) |
|||
|
DIMENSION |
22.5*90*100mm (W*H*D) |
||||
|
PACKING |
0.17Kg; 72pcs/13.2Kg/0.91CUFT |
||||
