Product Introduction
Specifications:
250W Series switching power supply
1.two years warranty
2.CE,ROHS approved
3.86% efficiency
4.110/220VAC input
Notice:
a.We do have enough ability to produce your customized order
b.Samples are available
c.High quality and competive price .
d.2 years warrenty ,buy with confidence
1.Features:
1. AC input wide range selectable automatically from 90V~240V
2. Protections: Short circuit / Overload / Over voltage / Over temperature
3. 100% full load burn-in test
4. Low cost, high reliability
5. 24 months warranty
Specification:
| Model | AS1230R-A |
| Input Voltage | AC 110/220V, 50/60Hz |
| Output Voltage | DC11V-15V |
| Total Output Current | 20A |
| Ripple & Noise | <=150mv |
| Efficiency | >=86% |
| Storage Temperature | -40—85℃ |
| Operating Temperature | -20—60℃ |
| Product Net Weight | 771.7g |

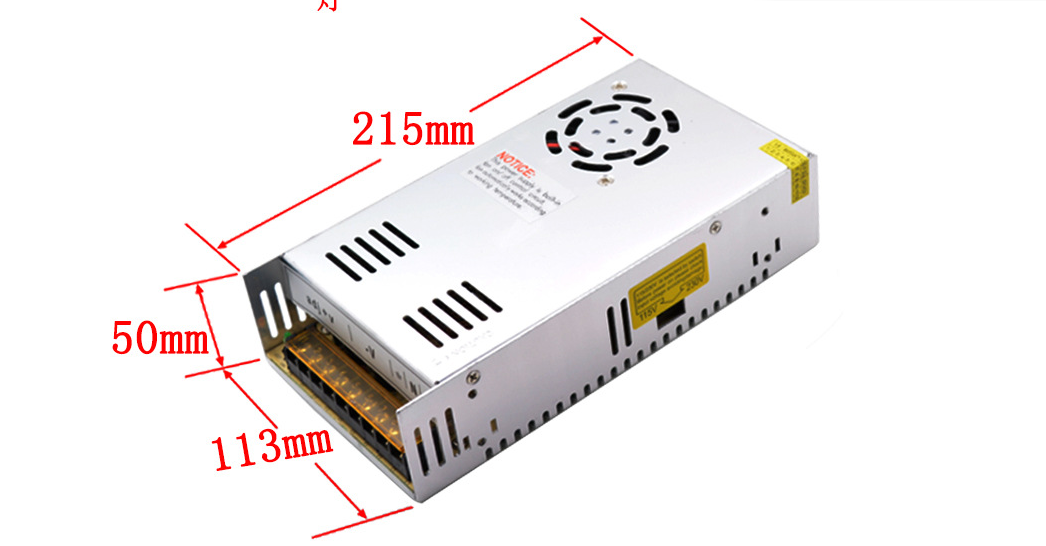

| Product Dimension | 215*115*50mm |
| Package Dimension | 216*117*55mm |
| Certificate | UL,CE,FCC |
| Warranty | 2 Year |
