Product Introduction
|

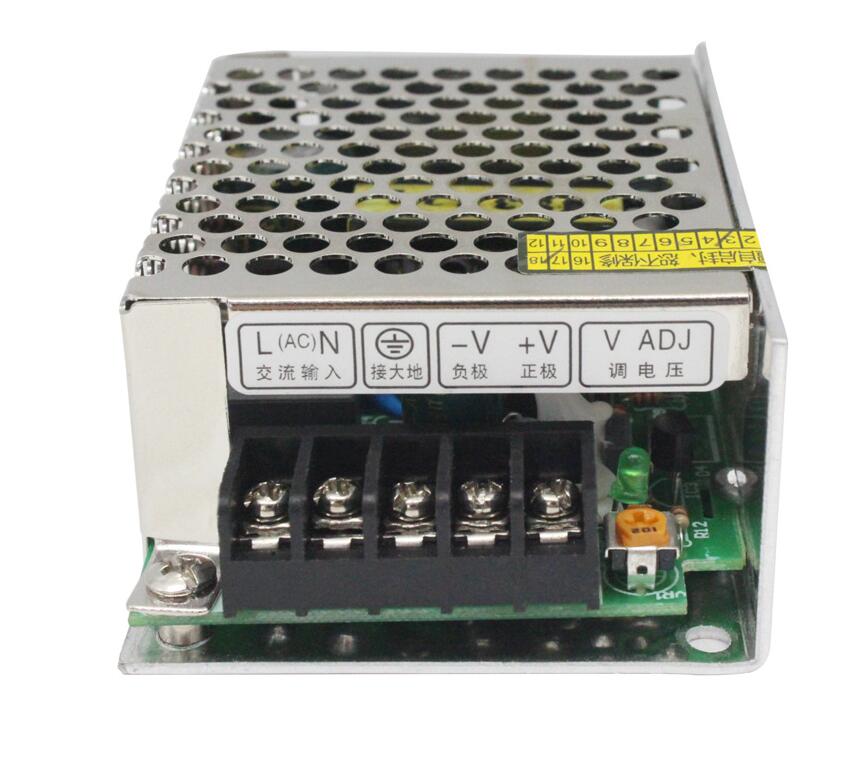

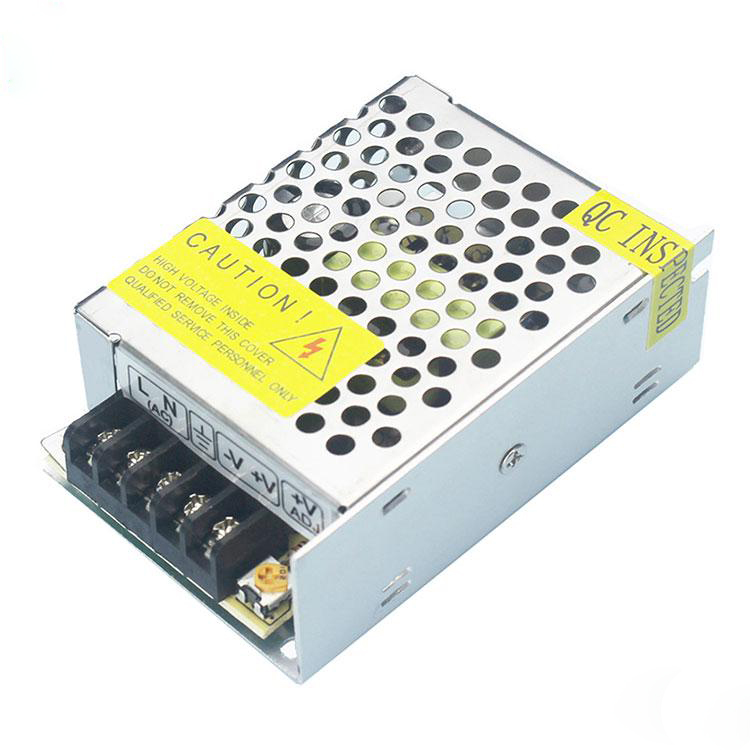

Switching 25W 12V 2A Power Supply |
||||
|
Model No. |
S-25-12 |
S-25-15 |
S-25-24 |
|
|
|
Dc Voltage |
12V |
15V |
24V |
|
Voltage Tolerance |
±1% |
±1% |
±1% |
|
|
Rated Current |
2.1A |
1.7A |
1.1A |
|
|
Current Range |
0~2.1A |
0~1.7A |
0~1.1A |
|
|
Rated Power |
25.2W |
25.5W |
26.4W |
|
|
Ripple Noise |
100mVp-p |
120mVp-p |
150mVp-p |
|
|
DC Voltage Range |
-9%~+10% |
±10% |
±10% |
|
|
Setup / Rise / Hold Time |
200ms,50ms,20ms/230VAC |
|||
|
|
Voltage Range |
100~240VAC 47~63Hz,135~373VDC |
||
|
AC Current |
0.55A/115VAC 0.35A/230VAC |
|||
|
Efficiency |
81% |
82% |
83% |
|
|
Inrush Current |
Cold start 30A/230VAC |
|||
|
Leakage Current |
<0.5mA/240VAC |
|||
|
PROTECTION |
|
Rated output power110%~135%Start overload protection |
||
|
Protection type:hiccup mode,auto-recovery after fault condition is removed |
||||
|
|
Working Temp/Humidity |
-10℃~+60℃;20%~90%RH(Please refer to“derating curve”) |
||
|
Storage Tem/Humidity |
-20℃~+85℃;10%~95%RH Non-condensing |
|||
|
Withstand Vibration |
10~500Hz,2G 10min./1Cycle,Period for 60min,Each axes |
|||
|
SAFETY |
Withstand Voltage |
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |
|||
|
FIT STANDARD |
Safety Standard |
Fit UL1012 |
||
|
EMC Standard |
Fit EN55022,CLASSA |
|||
|
|
Dimension |
84MM*58MM*30MM(L*W*H) |
||
|
Weight |
0.15kg |
|||
|
MTBF |
550K hrs min. MIL-HDBK-217F(25℃) |
|||
|
|
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. |
|||
|
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. |
||||
|
3. Tolerance : includes set up tolerance, line regulation and load regulation. |
||||
