Product Introduction
Specifications:

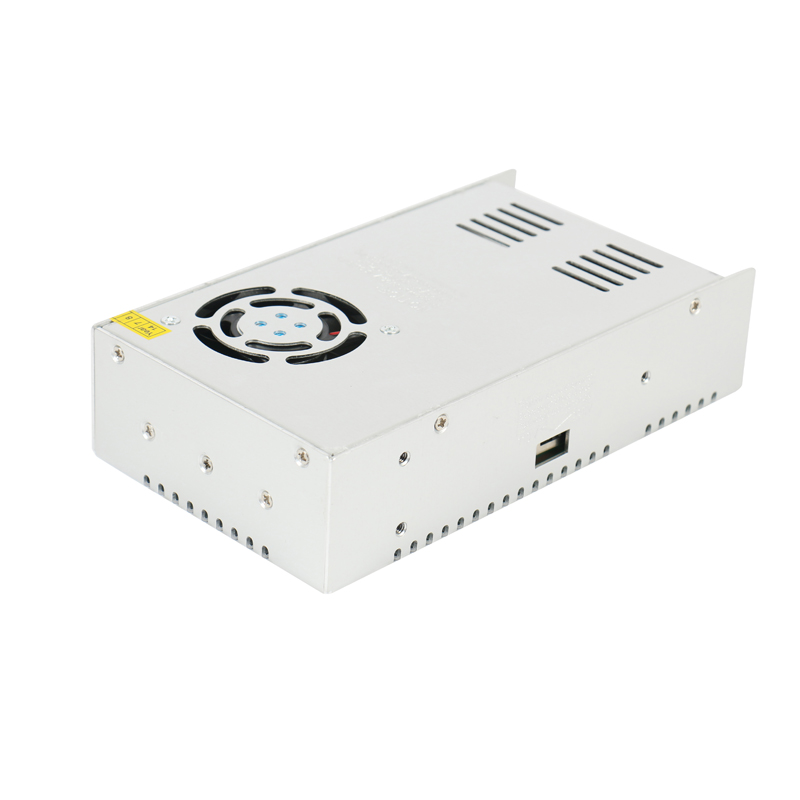

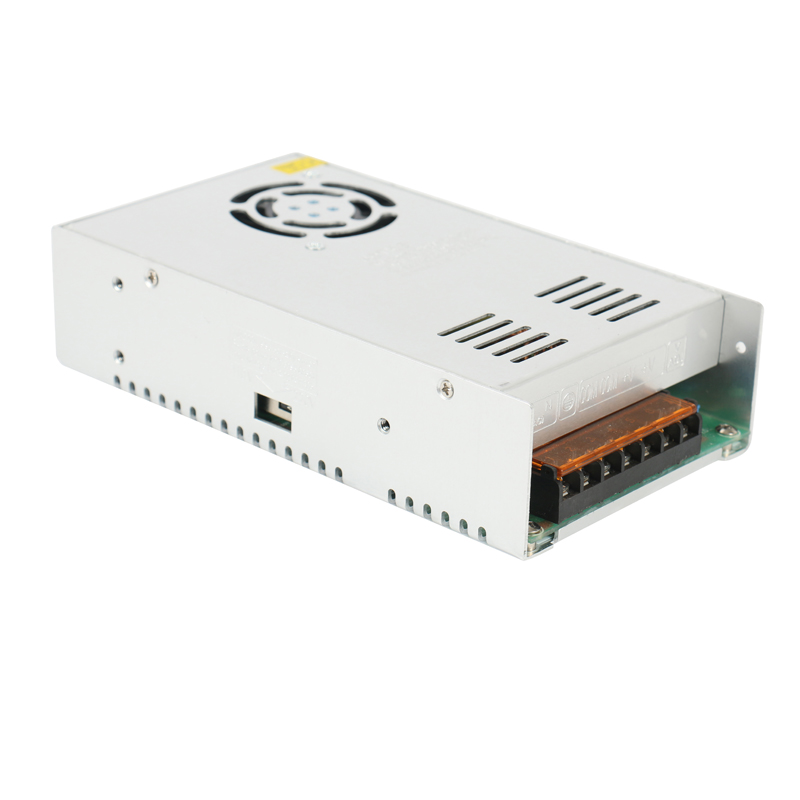

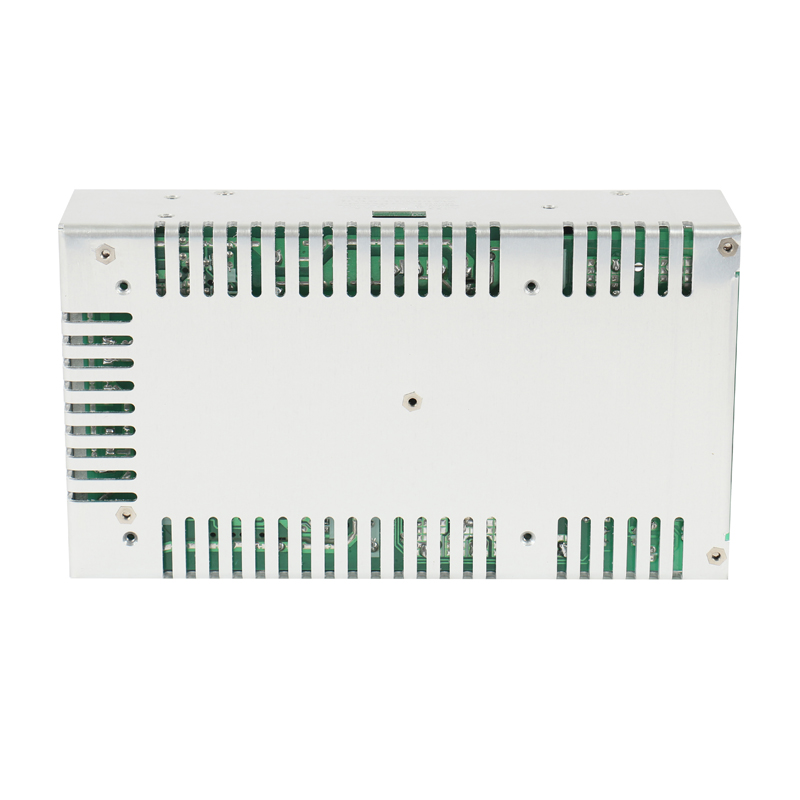

250W Series switching power supply
1.two years warranty
2.CE,ROHS approved
3.86% efficiency
4.110/220VAC input
Notice:
a.We do have enough ability to produce your customized order
b.Samples are available
c.High quality and competive price .
d.2 years warrenty ,buy with confidence
1.Features:
1. AC input range selectable by switch
2. Protections: Short circuit / Overload / Over voltage / Over temperature
3. 100% full load burn-in test
4. Low cost, high reliability
5. 24 months warranty
Specification:
|
Model |
S-250-5 |
S-250-12 |
S-250-15 |
S-250-24 |
S-250-27 |
S-250-48 |
|
||||||
|
output |
DC voltage |
5V |
12V |
15V |
24V |
27V |
48V |
|
|||||
|
Voltage tolerance |
±2% |
±1% |
±1% |
±1% |
±1% |
±1% |
|
||||||
|
Rated current |
50A |
29A |
23.2A |
14.6A |
13A |
7.3A |
|
||||||
|
Current range |
0~50A |
0~29A |
0~23.2A |
0~14.6A |
0~13A |
0~7.3A |
|
||||||
|
Rated power |
250W |
348W |
348W |
350.4W |
351W |
350.4W |
|
||||||
|
Ripple&noise |
100mvp-p |
150mvp-p |
150mvp-p |
150mvp-p |
150mvp-p |
200mvp-p |
|
||||||
|
DCvoltage ADJ.range |
-9%~+10% |
±10% |
±10% |
±10% |
±10% |
±10% |
|
||||||
|
input |
Voltage range |
90~132VAC/180~264VAC(selected by switch),255~373VDC |
|
||||||||||
|
frequency |
47~63HZ |
|
|||||||||||
|
AC current |
6.5A/115VAC,4.0A/230VAC |
|
|||||||||||
|
efficiency |
78% |
80% |
80% |
82% |
82% |
83% |
|
||||||
|
Inrush current |
Cold start current 25A/115VAC,50A/230VAC |
|
|||||||||||
|
Leakage current |
< 3.5mA/240VAC |
|
|||||||||||
|
protection |
overload |
Rated output power105%~135% start over load protection |
|
||||||||||
|
protection type :rated current limit ,auto-recovery after fault condition is removed |
|
||||||||||||
|
Over voltage |
6.8~8.2V |
15.6~17.8V |
18.6~20.8V30.6~33.2V |
33.2~35.6V |
54.8~56.6V |
|
|||||||
|
Protection type:hiccup mode,auto-recovery after fault condition is removed |
|||||||||||||
|
Over temperature |
≥55℃fan on,≤50℃fan off,≥85℃ start over temperature protection |
||||||||||||
|
Protection mode:cutoff output,auto-recovery after temperature become normal |
|||||||||||||
|
environment |
Working temp,humidity |
-10℃~+60℃,20%~90%RH |
|||||||||||
|
Storagetemp,humidity |
-20℃~+85℃,10%~95%RH non-condensing |
||||||||||||
|
Withstand vibration |
10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes |
||||||||||||
|
safety |
Withstand voltage |
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
|||||||||||
|
Isolated resistance |
I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC |
||||||||||||
|
Fitstandard |
Safety standard |
Fit UL1012 |
|||||||||||
|
EMC standard |
Meet EN55022,CLASSA |
||||||||||||
|
others |
Dimension |
210*112*50mm (L*W*H) |
|||||||||||
|
Weight/packing |
1.0kg/20pcs/20kg |
||||||||||||
|
note |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. |
||||||||||||
