Product Introduction

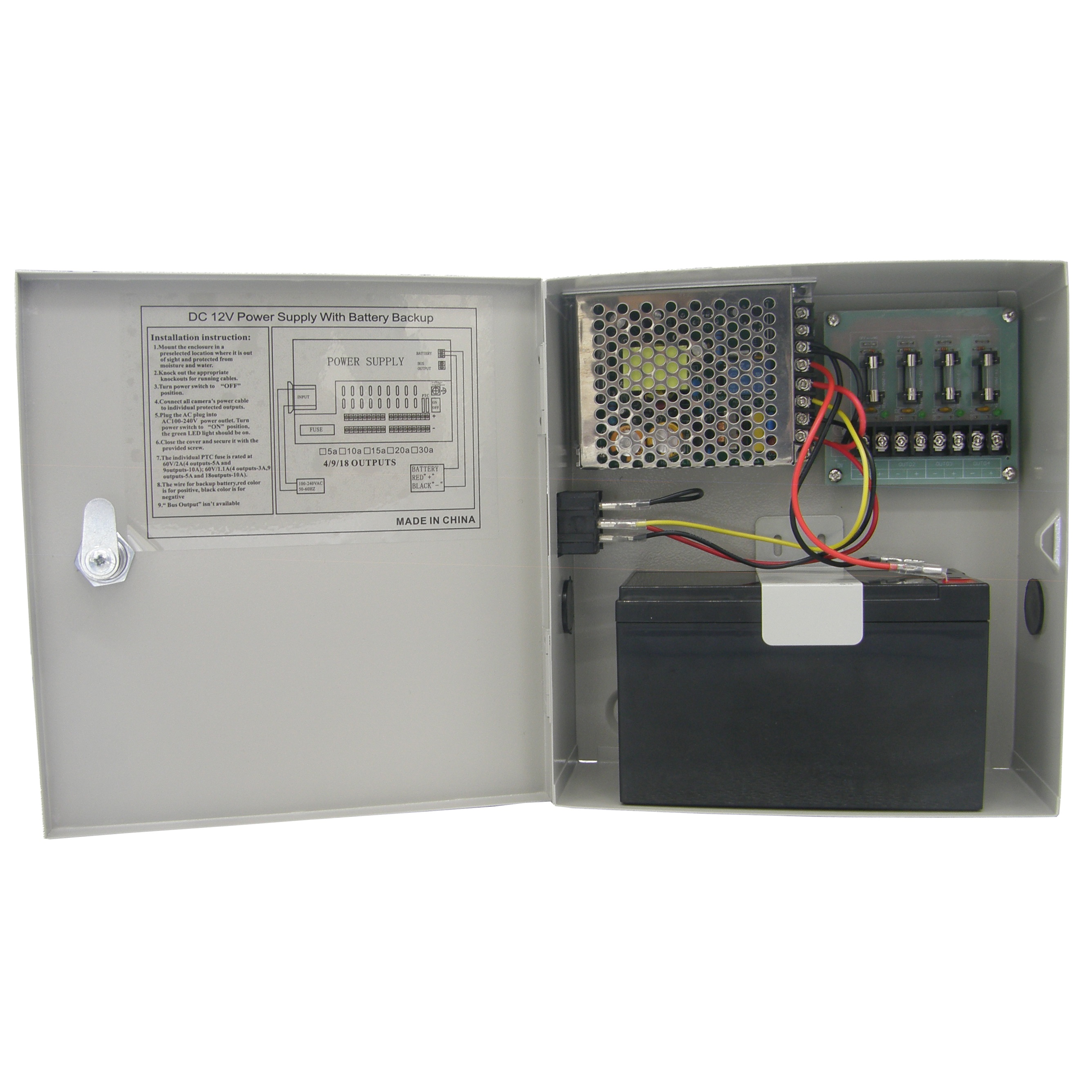

AP1204-5M (I)
Features:
12V DC, 4CH
FTC Fuse
5 Amps Power Box
UPS Functions
CCTV Camera Uninterruptible Power Supply
Fuse Rating: 1.75 Amp
90V~265V AC input
Power on/off switch
Surge protected
Regulated and filtered
Battery Protection at low voltage : 9V~11V
|
Model |
OW-AP1204-5M (I) |
|
|
Input Specification |
||
|
Input Voltage |
AC 100VAC/220VAC |
|
|
Input Voltage Frequency |
50/60Hz |
|
|
Output Specification |
||
|
Output Voltage |
DC 12V |
|
|
Total Output Current |
5A |
|
|
Total Outputs |
4ch |
|
|
Fuse Type |
Physical Fuse |
|
|
Fuse Rating |
1.75A |
|
|
Weight (Kg) |
||
|
Net Weight |
2.4 |
|
|
Dimension (mm) |
||
|
Cabinet Dimension |
265H x 205W x85 D |
|
|
Packing Dimension |
275H x215 W x 98D |
|
|
Protection |
||
|
General Protection |
each output has individual physical fuse and LED indicator, when problem occurs, only affect the individual output, other outputs still working |
|
|
Circuit Short Protection |
When short condition occurs, individual physical fuse will open the circuit, when condition removed, PTC fuse will automatically back to close. |
|
|
High Voltage Protection |
when high voltage occurs, the surge protection will be hit through to protect the connected device |
|
|
Over Current protection |
when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normaland don't need to change the FTC fuse. |
|
