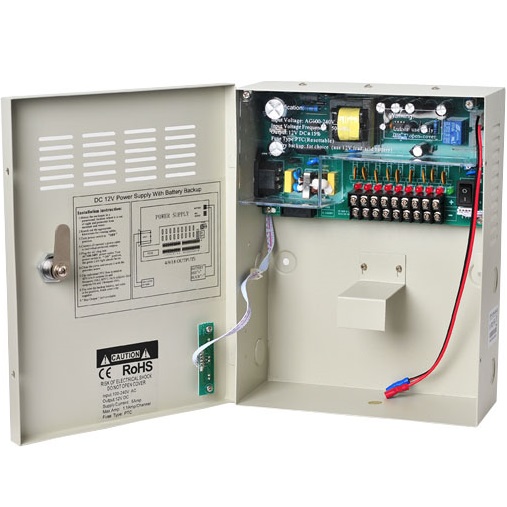

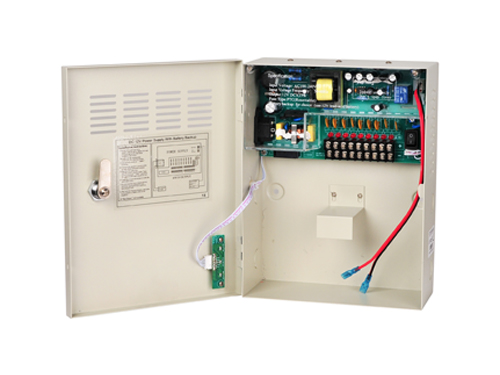

AP1209-5M
Features:
12V DC, 9CH
FTC Fuse
5 Amps Power Box
UPS Functions
CCTV Camera Uninterruptible Power Supply
Fuse Rating: 1.35 Amp
90V~265V AC input
Power on/off switch
Surge protected
Regulated and filtered
6.3"H x 6.3"W x 1.8"D
|
Model |
AP1209-5M |
|
|
Input Specification |
||
|
Input Voltage |
AC 100VAC/220VAC |
|
|
Input Voltage Frequency |
50/60Hz |
|
|
Output Specification |
||
|
Output Voltage |
DC 12V |
|
|
Total Output Current |
5A |
|
|
Total Outputs |
9ch |
|
|
Fuse Type |
Physical Fuse |
|
|
Fuse Rating |
1.35A |
|
|
Weight (Kg) |
||
|
Net Weight |
2.25 |
|
|
Dimension |
||
|
Cabinet Dimension |
264*206*90mm |
|
|
Packing Dimension |
271*214*96mm |
|
|
Protection |
||
|
General Protection |
each output has individual physical fuse and LED indicator, when problem occurs, only affect the individual output, other outputs still working |
|
|
Circuit Short Protection |
When short condition occurs, individual physical fuse will open the circuit, when condition removed, PTC fuse will automatically back to close. |
|
|
High Voltage Protection |
when high voltage occurs, the surge protection will be hit through to protect the connected device |
|
|
Over Current protection |
when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal and don't need to change the FTC fuse. |
|
