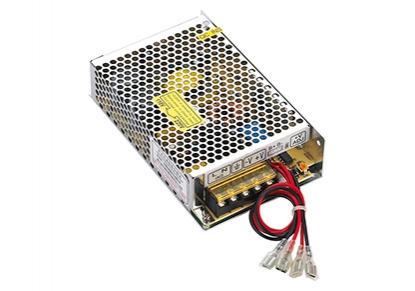

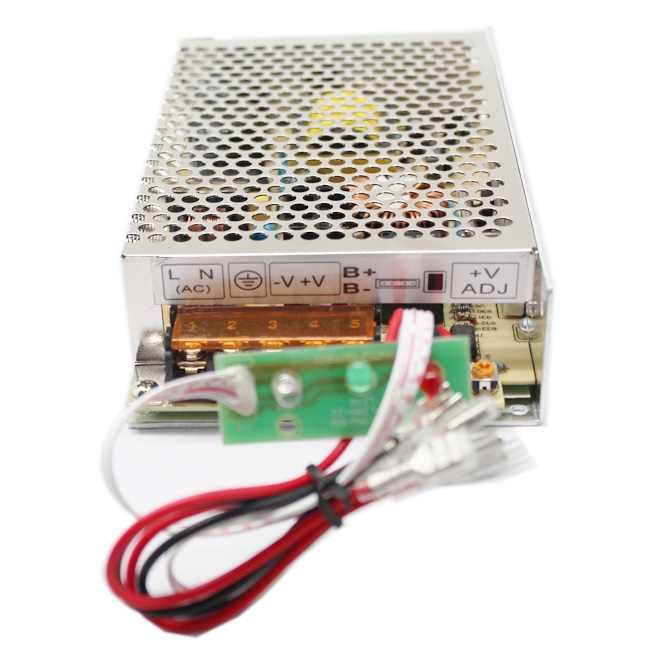

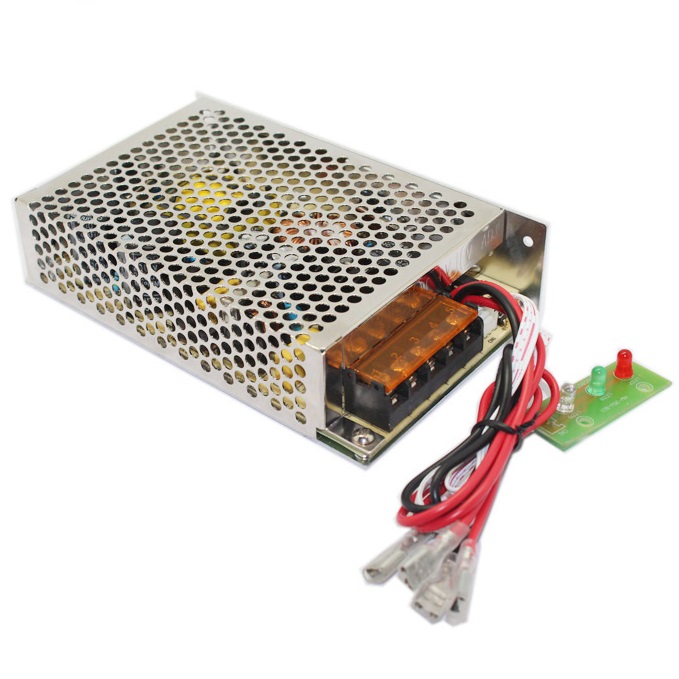

Product Introduction
·Universal AC input range
·Small volume，low weight，high efficiency
·Protections:short circuit/over load
·LED indicator for power on/Charging/nomal
·Battery protection at low voltage
·100% full load burn-in test
·2 Years warranty
|
Model |
SC-120-12 |
SC-120-24 |
|||
|
Output |
DC voltage |
CH1:13.8V |
CH2:13.4V |
CH1:27.6V |
CH2:26.5V |
|
Voltage tolerance |
±1％ |
----- |
±1％ |
----- |
|
|
Rated current |
8.0A |
0.50A |
4.0A |
0.30A |
|
|
Current range |
0～8.0A |
----- |
0～4A |
----- |
|
|
Rated power |
117.1W |
118.4W |
|||
|
Ripple&Noise |
120mVp-p |
----- |
180mVp-p |
----- |
|
|
DC Voltage ADJ. range |
CH1:11.3～14.9V |
CH1:21.3～29.8V |
|||
|
Setup,Rise,Hold up time |
600ms,50ms,80ms/230VAC.1200ms,50ms,16ms/115VAC. |
||||
|
Input |
Voltage range |
90～132VAC/180～264VAC( selected by swtich）or 255～370VDC |
|||
|
Ac current |
2.8A/115VAC 1.4A/230VAC |
||||
|
Efficiency |
84% |
86% |
|||
|
Inrush current |
cold start 30A/115VAC 50A/230VAC |
||||
|
Leakage current |
＜1mA/240VAC |
||||
|
Protection |
Over load |
110%～150% Rated output power |
|||
|
Protection type : AC charging mode Hiccup mode,recovers automatically after fault condition is removed |
|||||
|
Battery low |
9.5～11V |
20～22V |
|||
|
Protection type : cutt off output |
|||||
|
UPS system |
long-term online floating charge to battery,high charging efficiency,battery can saturate to more than 90% |
||||
|
auto-stop charging when it's full,prevent over charging.Effectively extend battery life |
|||||
|
AC/battery auto switch ,no switch time,no need human guard |
|||||
|
cold-start ,when there is no AC input ,can use battery start UPS,Meet the user's emergency needs |
|||||
|
Environment |
Working temp,humidity |
-10℃～+50℃;20%～90%RH(Refer to "Deration Curve") |
|||
|
Storage temp,humidity |
-20℃～+85℃;10%～95%RH non-condensing |
||||
|
vibration |
10～500Hz，2G 10min./1cycle，period for 60min，each along X,Y,Z axes |
||||
|
Safety |
Withstand voltage |
I/P-O/P：1.5KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC |
|||
|
Isolation resistance |
I/P-O/P： I/P-FG,O/P-FG：100M Ohms/500VDC |
||||
|
EMC |
Safety standard |
Compliance UL60950-1,. GB4943 |
|||
|
EMC |
Compliance EN55022，EN55024,CLASS B |
||||
|
Others |
Dimension |
0.56kg 159*98*38mm（L*W*H） |
|||
|
Packing |
0.56kg/45pcs/24kg |
||||
NOTE:
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
