Product Introduction

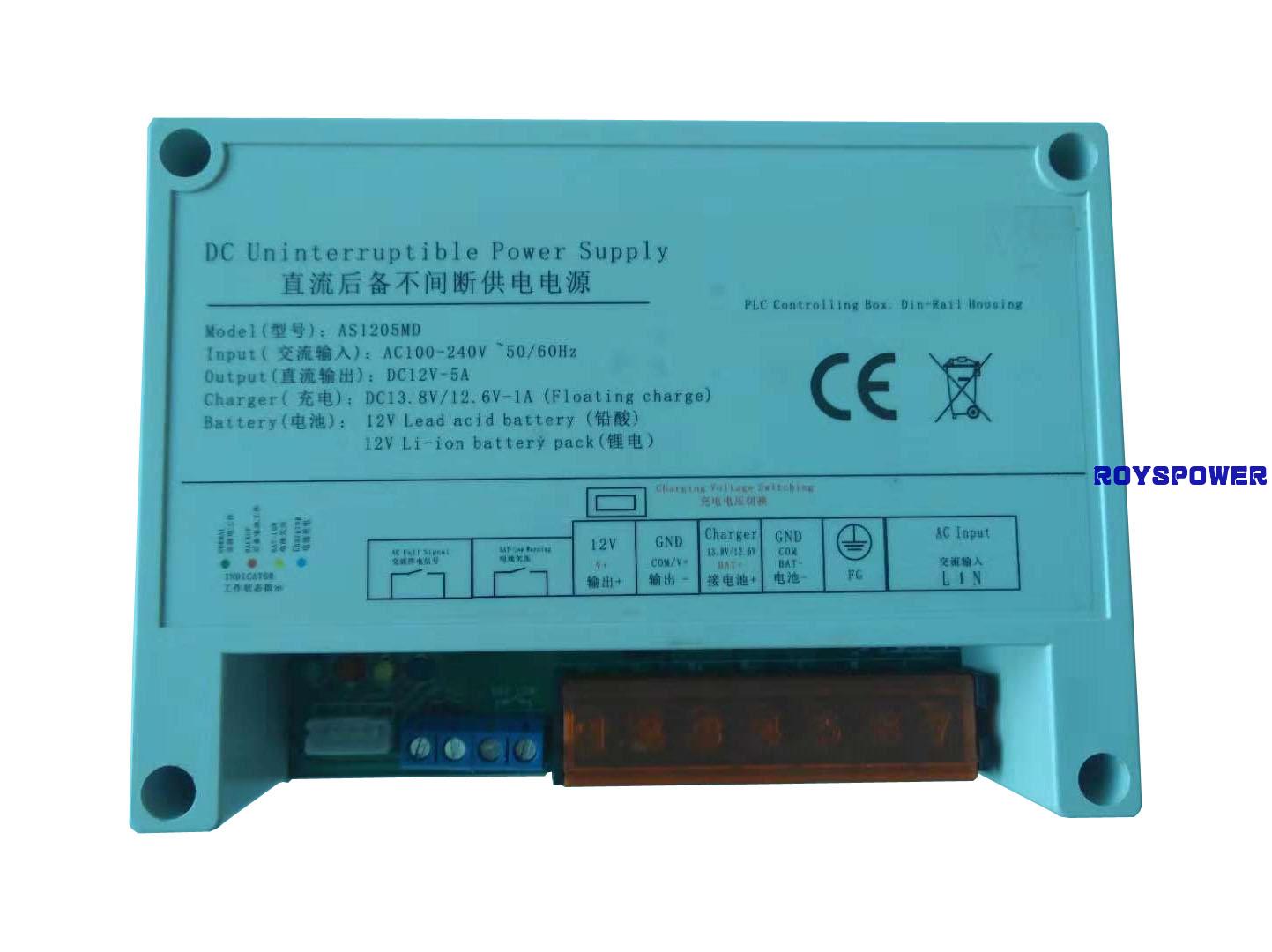

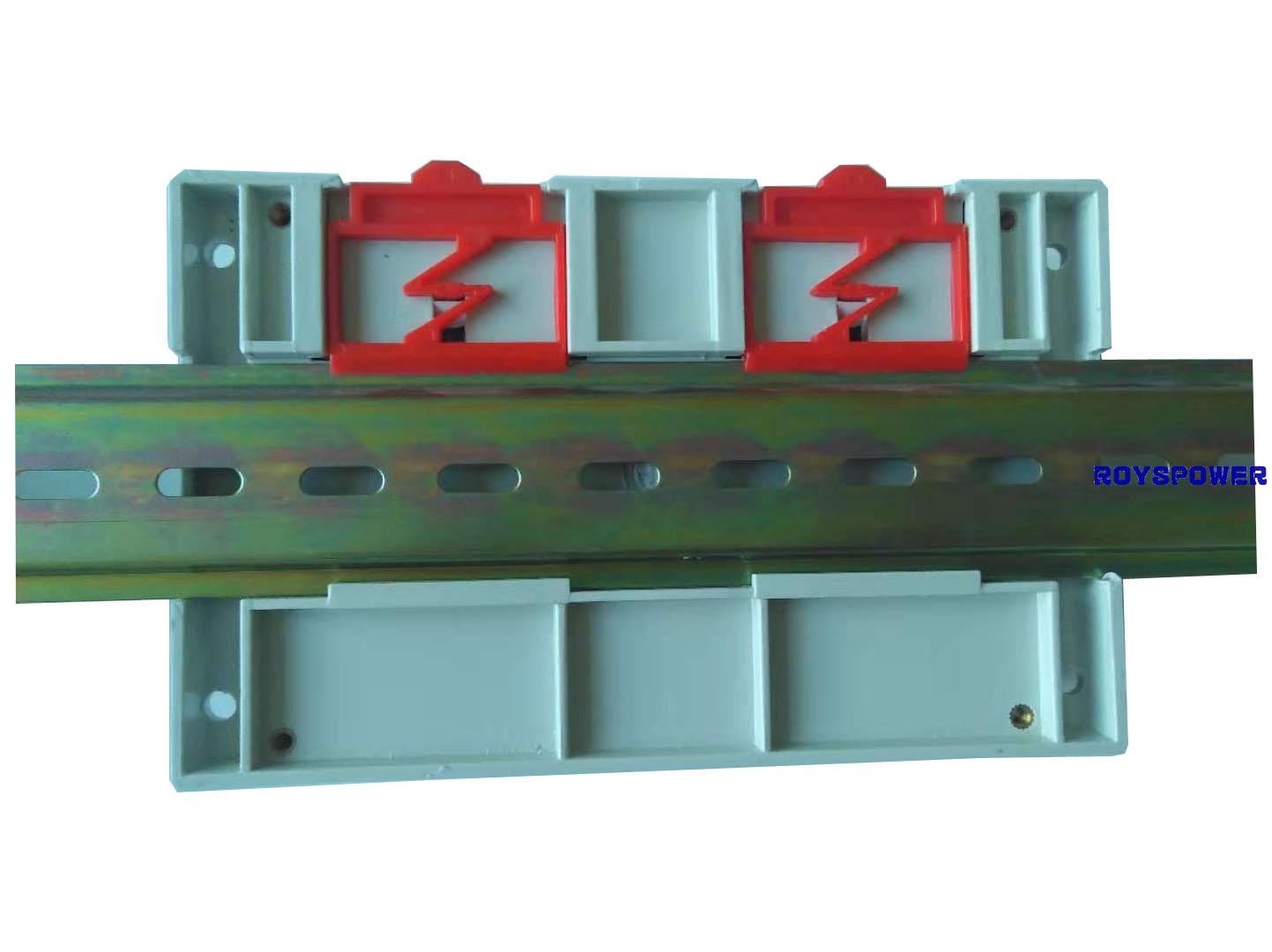

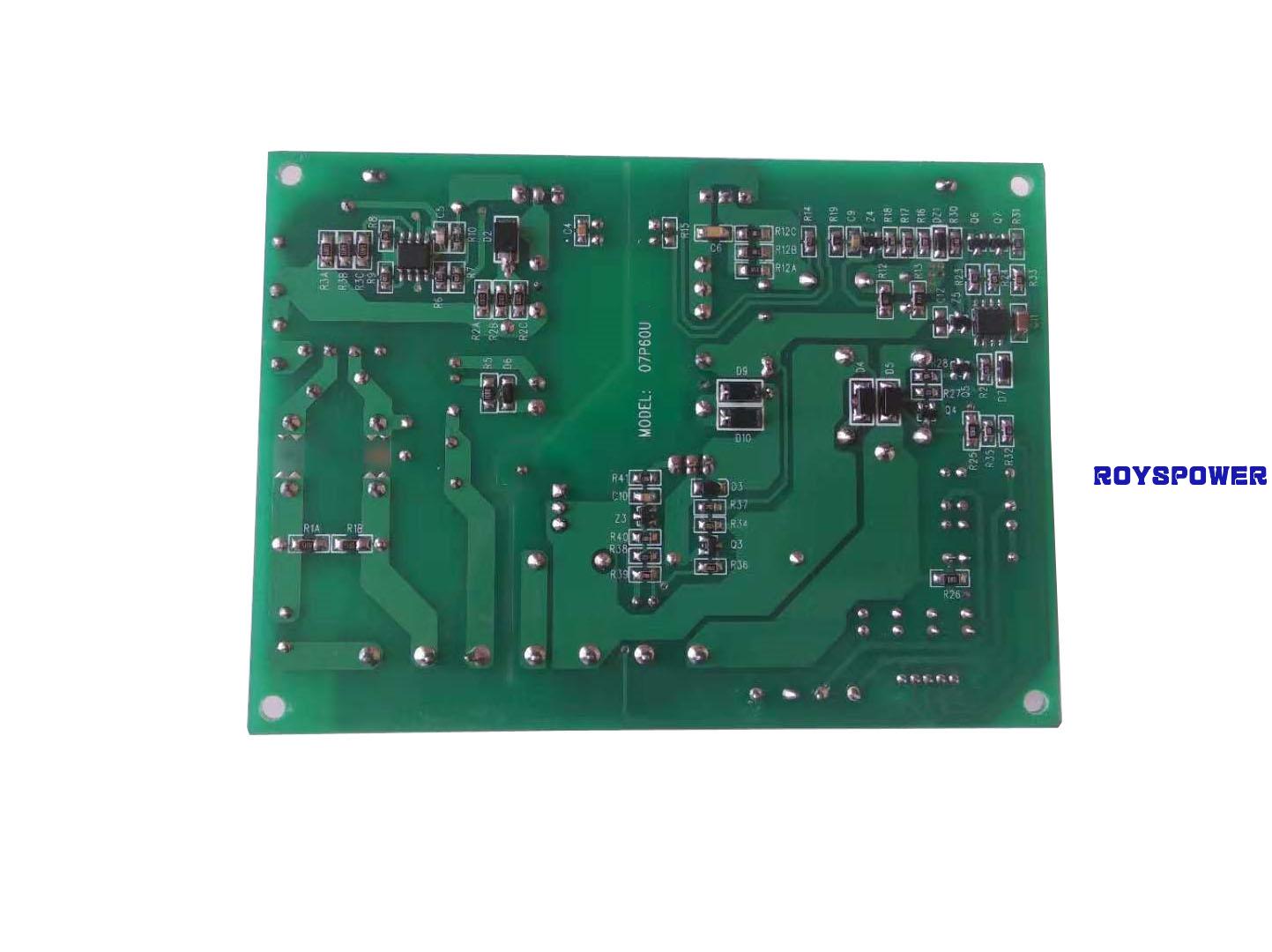

Din Rail Power Supply Box with UPS Function
Specification：
AC Input：AC 100-240V
No Load Loss :≤1W
Efficiency: 86%
Input Tube : T3.15AL250V
Output Voltage: DC12V±0.5V at V+
DC13.6V±0.2V at Charger (Lead acid Bat.）
DC12.5V±0.2V at Charger (Li-ion Bat.）
Output circuit: (12V) 5.0A (13.8V/12.6V charging)0.8A
Output Short Circuit Protection: OK
Overload Protection: 105%--150% rated current.
Constant current regulated floating charge: automatically stops charging when the voltage reaches the floating charge voltage.
Battery counter-protection function: internal self-recovery PTC fuse disconnection when positive and negative polarity of battery are connected mistakenly.
Insulation withstand voltage: (input L, N short circuit; output V+, V-short circuit)
Input-output: 1.5KVac 1min 5mA, no flash, no breakdown;
Input Terminal - ground terminal: 1.5KVac 1min 5mA, no flash arc, no breakdown;
Output-grounding terminal: 0.5KVac 1min 5mA, no flash, no breakdown.Insulation Resistance: 500Vdc 1 min Insulation Resistance not less than 100MΩ
Size: 145*90*45mm
Weight: 0.3Kg
Packing carton size: 165*105*46
Packing box: 50 sets in one box

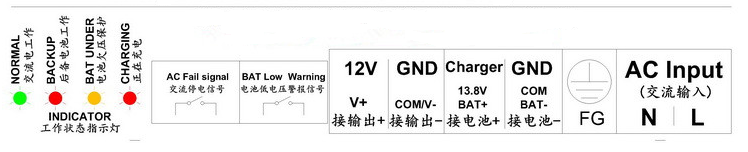

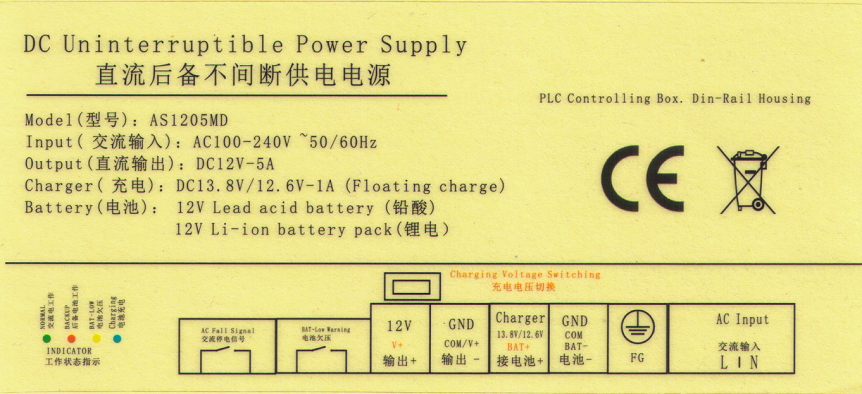

4 sets of working state indicator lights
NORMAL (AC Online Indicator) A Green Light
BACKUP (Backup Battery Operating Indicator) Red Light on
BAT UNDER (Battery Under-voltage Alarm Indicator) A Yellow Light on
CHARGING (Charging Indicator) Blue Light on

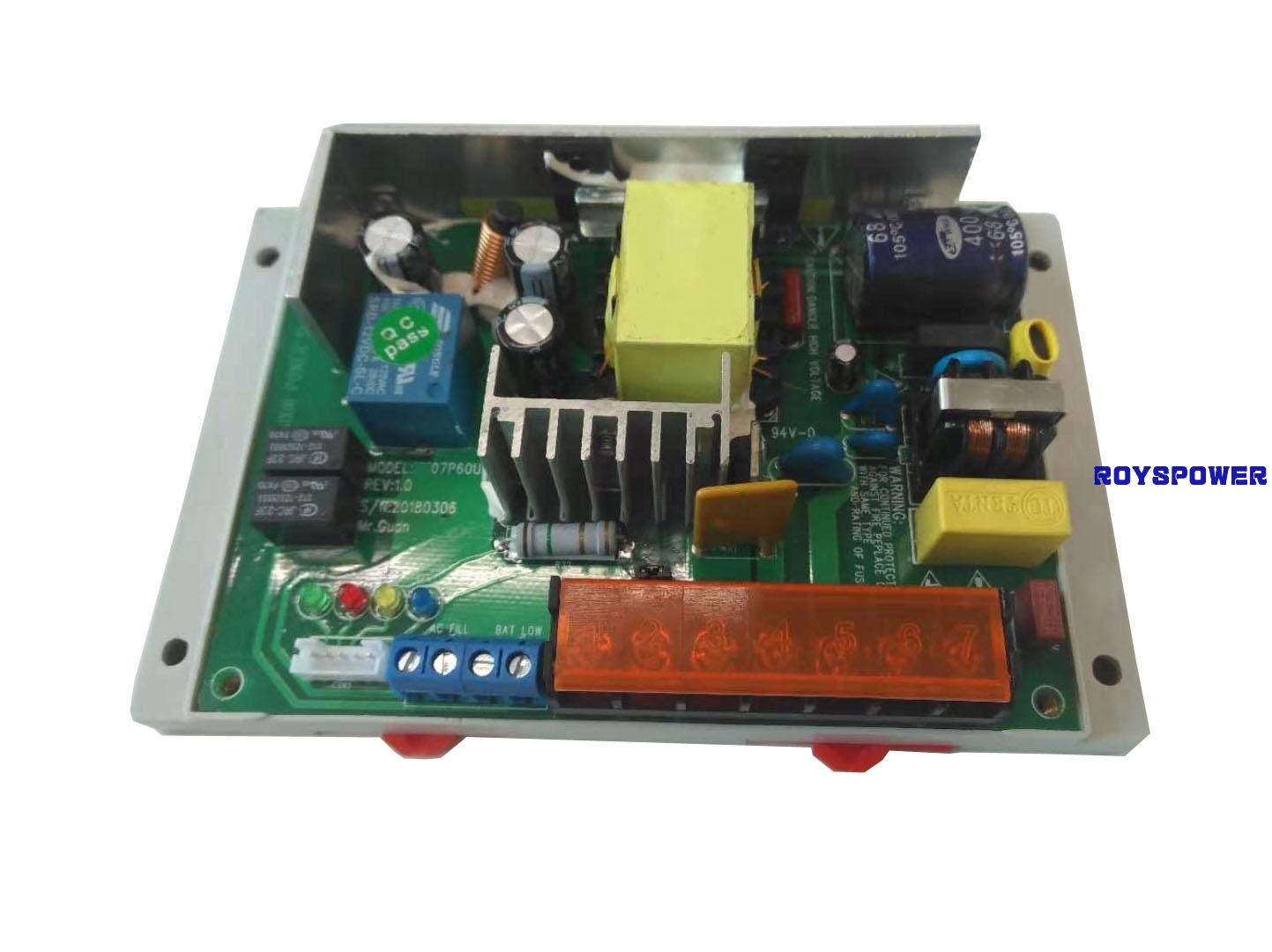

The power supply has four sets of working state indicators. If the working state indicators need to be extended, the power supply has PH2.0-5P connection mother socket interface, and the factory has 30CM extension lamp board wiring selection, which is convenient for the application of changing the installation position of working state indicators.

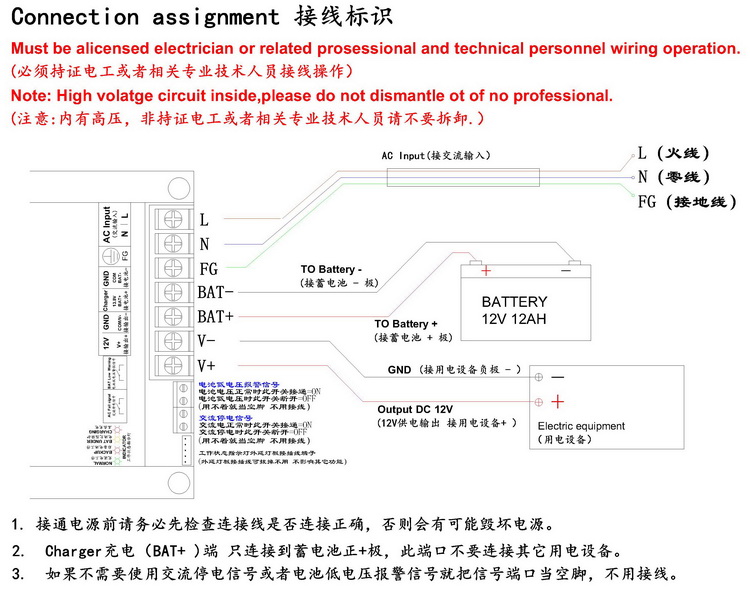

Charging Voltage Switching: There is a short-circuit cap with voltage switching on the inner side of the power supply terminal. The charging voltage is 13.8V0.8A (lead-acid battery) when the cap is plugged on that is preseted, and the charging voltage of the short-circuit cap is 12.6V0.8A (lithium battery pack) when the cap is pulled off.
