Product Introduction

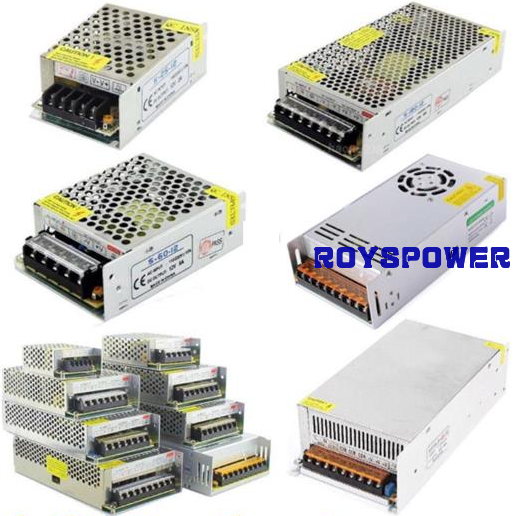

E-series Power
Cost-effective power supply with good price and quality.
The all-aluminum case is more conducive to heat dissipation, which facilitates the selection of components and simplifies circuit designing, and also provides the possibility of cost reduction for our customers in developing areas.
Testing sample orders and marketing trial orders are welcome.
Features:switching power supply
Output Type: Single
Output Power: 1 - 600W
Input Frequency: 50/60 Hz
Input Voltage: 100/110/120/220/230/240VAC
Input Voltage/ Frequency: 100-240V AC 50/60HZ
Output Voltage Range: 3V-48V
Output Current Range: 0.1A-60A
Max .Output power: 600w
Ripple Ware: 0.4%
Efficiency:≥85%
Insulation: 3KV/5MA or 3.75KV/5MA
Output protection: Over Voltage Protection Over Current Protection Short Circuit Protection Over hot Protection
Working Temperature Range:-10~+407deg; C
Storage Temperature Range:-40~+70°C
5V E-Series
|
No. |
Power |
Model |
Input |
Output |
Size(mm) |
Cooling |
Warranty |
G.W Kg |
PCS/CTN |
|
1 |
96W |
S-96-48 |
110V/220V |
48V2A |
158*98*42 |
Air |
2 Years |
0.33kg |
65 |
|
2 |
144W |
S-144-48 |
110V/220V |
48V3A |
198*98*42 |
Air |
2 Years |
0.55kg |
50 |
|
3 |
240W |
S-240-48 |
110V/220V |
48V5A |
199*109*50 |
Air |
2 Years |
0.65kg |
36 |
|
4 |
360W |
S-360-48 |
110V/220V |
48V7.5A |
215*112*50 |
Fan |
2 Years |
0.9kg |
36 |
|
5 |
480W |
S-480-48 |
110V/220V |
48V10A |
240*122*63 |
Fan |
2 Years |
1.4kg |
21 |
|
6 |
720W |
S-720-48 |
110V/220V |
48V15A |
242*131*68 |
Fan |
2 Years |
2kg |
21 |
