Product Introduction

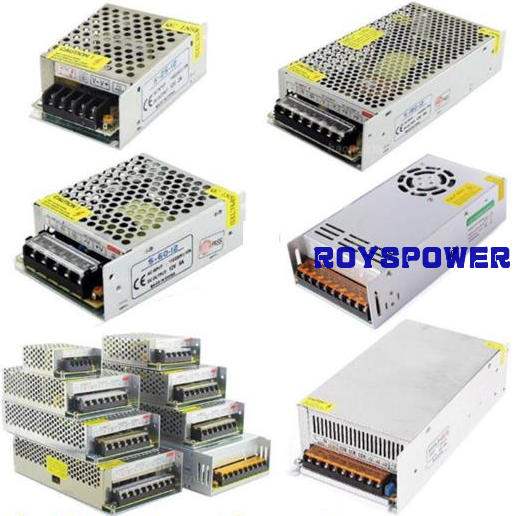

E-series Power

Cost-effective power supply with good price and quality.

The all-aluminum case is more conducive to heat dissipation, which facilitates the selection of components and simplifies circuit designing, and also provides the possibility of cost reduction for our customers in developing areas.

Testing sample orders and marketing trial orders are welcome.

Features:switching power supply

Output Type: Single

Output Power: 1 - 600W

Input Frequency: 50/60 Hz

Input Voltage: 100/110/120/220/230/240VAC

Input Voltage/ Frequency: 100-240V AC 50/60HZ

Output Voltage Range: 3V-48V

Output Current Range: 0.1A-60A

Max .Output power: 600w

Ripple Ware: 0.4%

Efficiency:≥85%

Insulation: 3KV/5MA or 3.75KV/5MA

Output protection: Over Voltage Protection Over Current Protection Short Circuit Protection Over hot Protection

Working Temperature Range:-10~+407deg; C

Storage Temperature Range:-40~+70°C

36V E-Series
