产品介绍
技术参数 Technical parametric
|
型号Model |
AD1202F |
|
直流输出压 DC output voltage |
12V |
|
输出电压容差Output voltage |
+1% |
|
额定输出电流Rated output current |
2.0A |
|
输出电流范围Output current range |
0～2.0A |
|
纹波及噪音Wave and noise |
100mVp-p |
|
进线稳定度Inlet stability |
+0.5% |
|
负载稳定度Load stability |
+1% |
|
直流输出功率DC output power |
24W |
|
效率Efficiency |
85% |
|
直流电压可调范围Adjustable range for DC voltage |
+10% |
|
输入电压范围AC input voltage range |
85～132VAC/170～264VAC 由开关选择 47～63Hz; 255～370VDC |
|
输入电流 Input current |
0.21A/115VAC 0.12A/230VAC |
|
冲击电流AC inrush current |
冷启动电流30A/115V 60A/230V |
|
漏电流Leakage current |
〈1mA/240VAC |
|
过载保护Overload protection |
105%～150% 关断电流，自动恢复Shut off current ,automatically restore |
|
过电压保护Over voltage protection |
输出电压的115%～135% |
|
高温保护High temperature protection |
………………. |
|
温度系数Temperature coefficient |
+0.03%/℃（0～50℃） |
|
启动、上升、保持时间Setup,rise,hold up time |
200ms,100ms,30ms |
|
抗震性Withstand voltage |
10～500Hz,2G 10分钟/周期， X、Y、Z轴各60分钟 |
|
耐压性Withstand voltage |
输入输出间：1.5KVAC 输入与外壳：1.5KVAC 输出与外壳：0.5KVAC |
|
隔离电阻Isolation resistance |
输入输出间,输入与外壳, 输出与外壳500VDC/100mΩ Input and output internal,input and enclosure,output and enclosure:500VDC/100MΩ |
|
工作温度、湿度Working temperature and humidity |
-10℃～+60℃，20%～90%RH |
|
储存温度、湿度Store temperature and humidity |
-20℃～+85℃，10%～95%RH |
|
重量Weight |
0.28Kg |
|

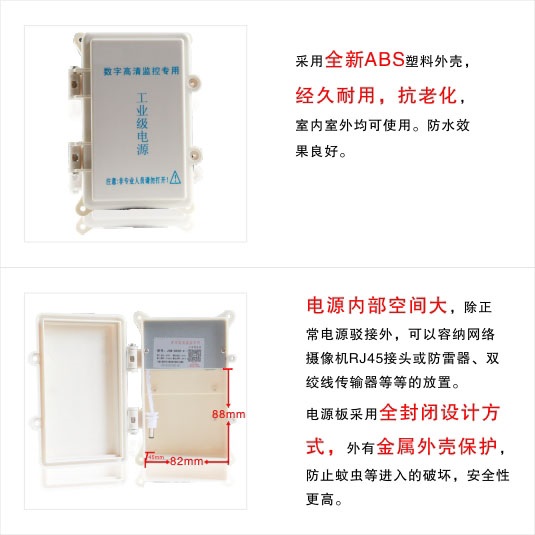

安装尺寸图Installation dimensions(mm) |
145*90*58mm |
