Product Introduction

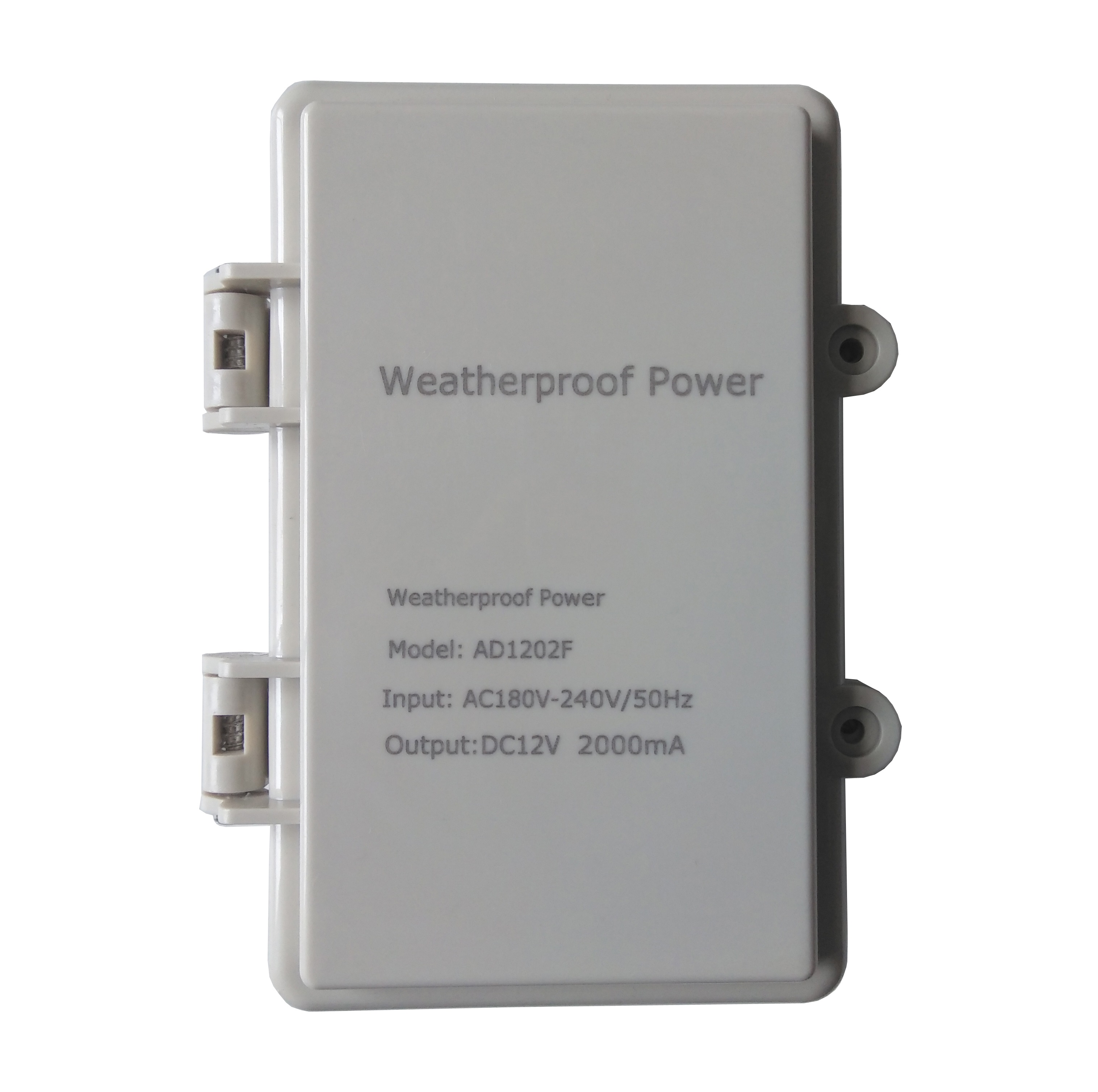

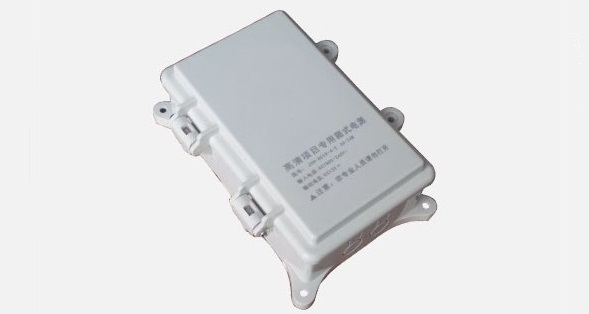

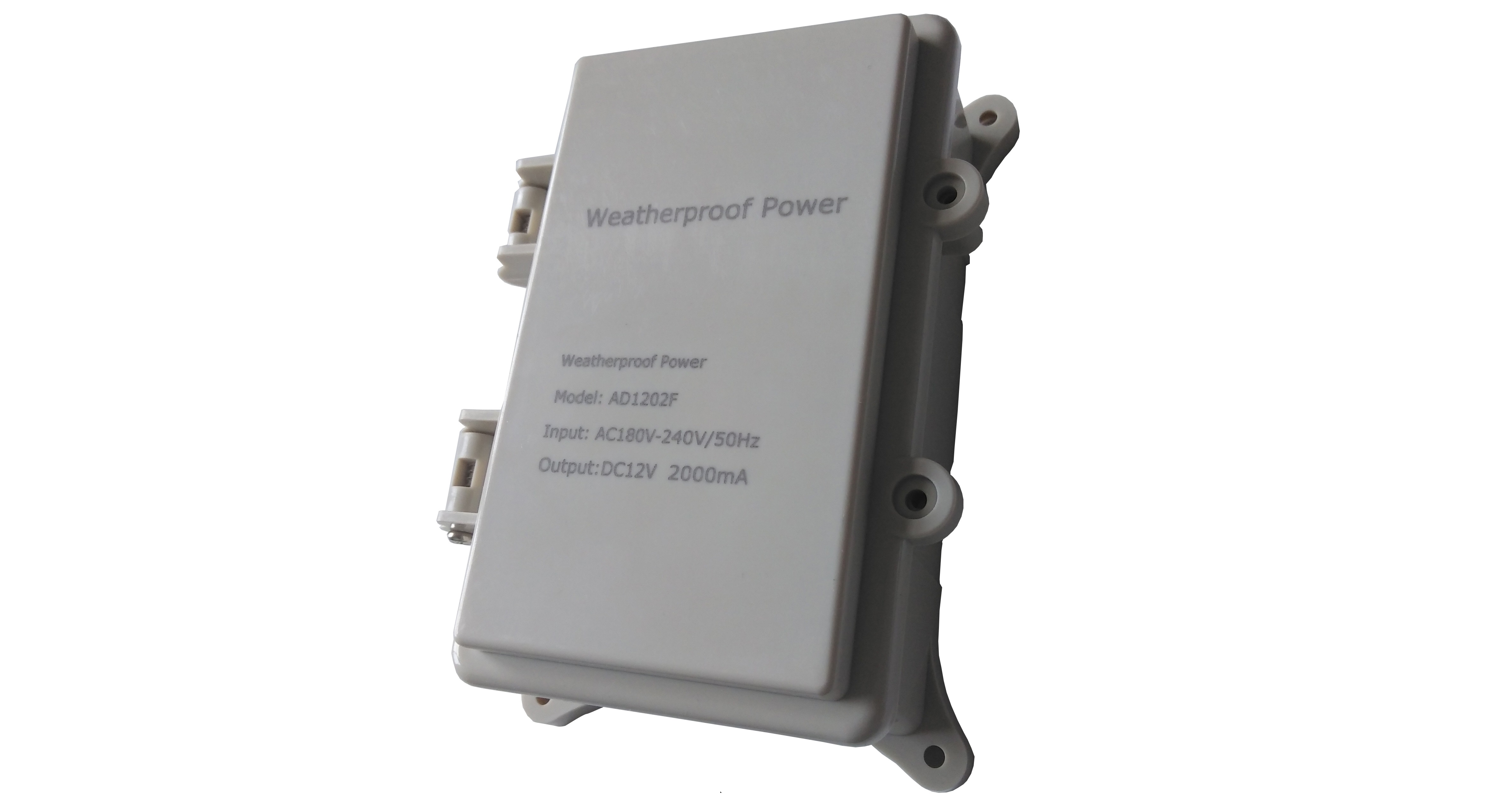

Outdoor Usage Rain Proof 100W 12V 2.0A Rainproof Power Supply
|
Model |
AD1202F |
|
|
Output |
DC Voltage |
12V |
|
|
Rated Current |
2.0A |
|
|
Current Range |
0~2.0A |
|
|
Rated Power |
24W |
|
|
Ripple & Noise (max.) |
120mVp-p |
|
|
Voltage Tolerance |
±1.0% |
|
|
Line Regulation |
±0.5% |
|
|
Load Regulation |
±1.0% |
|
|
Setup,Rise time |
500ms, 30ms at full load |
|
|
Hold time (Typ.) |
40ms at full load |
|
Input |
Voltage Range |
190-240VAC |
|
|
Frequency Range |
50-60HZ |
|
|
Efficiency(Typ.) |
86% |
|
|
Inrush Current (Typ.) |
COLD START 45A/230VAC |
|
|
Leakage Current |
<0.75mA / 240VAC |
|
Protection |
Over Load |
105 ~ 135rated output power |
|
|
|
Protection type : hiccup mode. Auto recovery |
|
|
Over Voltage |
115 ~ 135rated output voltage. |
|
|
|
Protection type : Hiccup mode, recovers automatically after fault condition is removed |
|
Environment |
Working Temperature |
-30 ~ +40°c (Refer to "Derating Curve" ) |
|
|
Working Humidity |
20~90% RH Non-condensing |
|
|
Storage temp.& humidity |
-40~+85°C, 10~95%RH |
|
|
Packing |
50PCS/14KG |
