Product Introduction

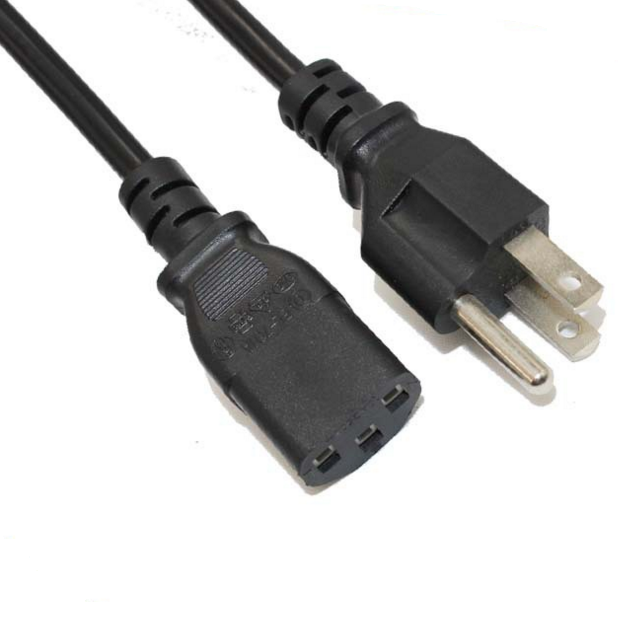

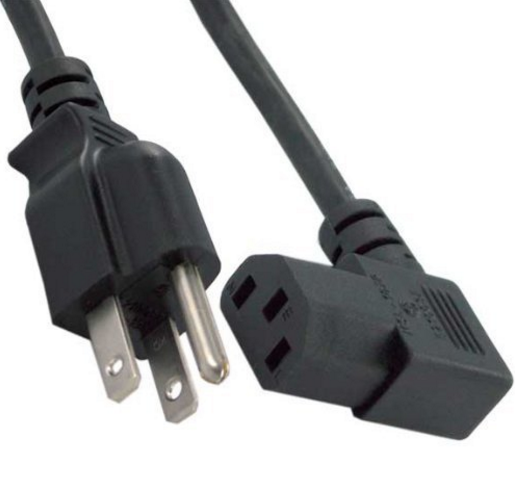

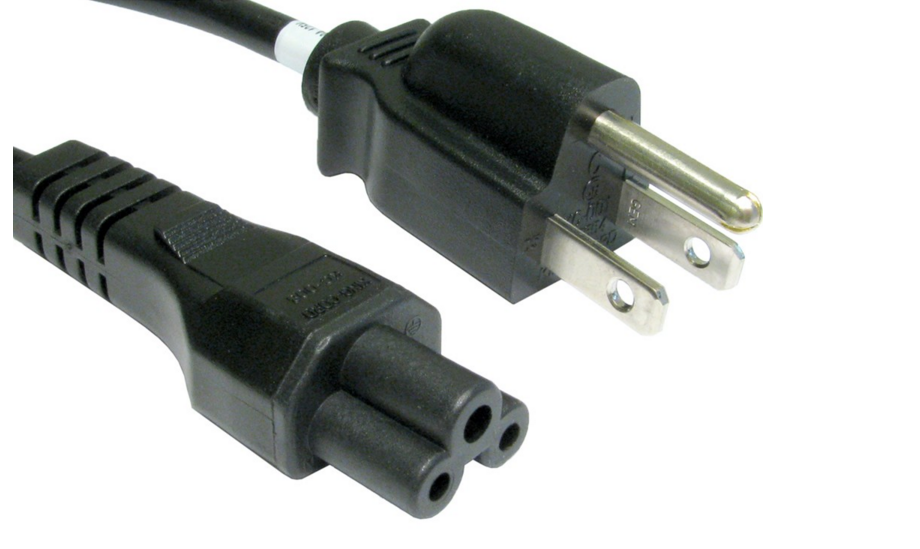

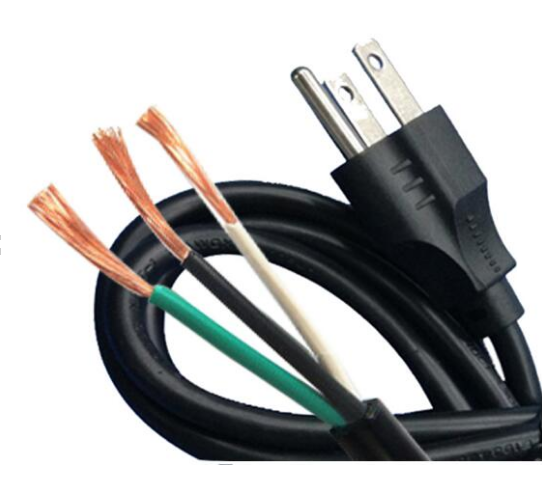

US plug power cord with PVC cable
|
Item |
AC power cord with CE FCC |
|
Applications: |
Suitable for general household electrical appliances and office equipment |
|
Environmental requirements |
Working temperatures: 0~40°C, 20-90%RH |
|
Storage temperatures: -20~80°C, 20-90%RH |
|
|
Jacket: |
Flame-retardant PVC |
|
Insulation: |
Color coded PVC or SR-PVC |
|
Tests |
UL VW-1 & CSA FTI vertical flame test Aging Test (Elogation and Strength test) DVW Test: 1500VAC, 1S Polarization and Contiunity Test Connector Rated Power Test |
|
Features |
10A - 125V/250V; 15A - 125V/250V; 30A - 125V/250V 50A - 125V/250V |
Electrical performance standard
|
Voltage/frequency: |
250V/50Hz |
|
Plug rating: |
10A 250V |
|

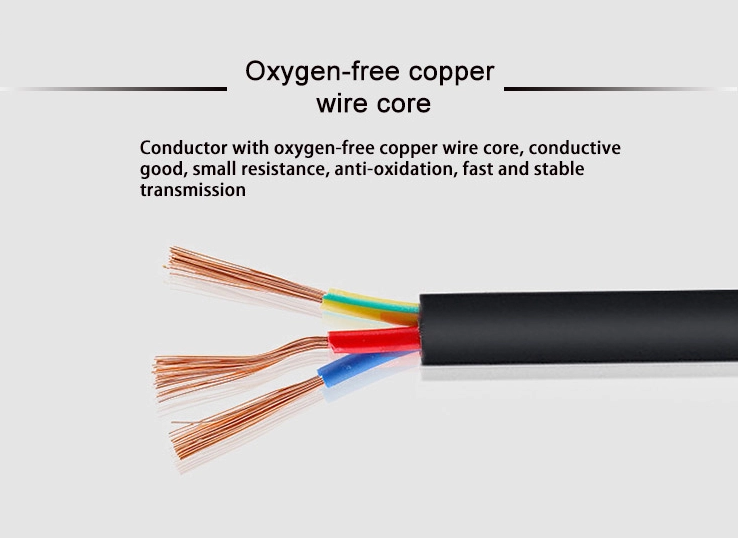

Conductor Type: |
Annealed soft bare copper wire |
|
Number of conductors: |
3 |
|
Conductor size: |
0.75mm², 1mm², 1.5mm²...... |
|
Conductor construction: |
24/0.2 |
|
Cord jacket diameter: |
6.35±0.2 |
|
Temperature rating: |
60℃- 105 ℃ |
|
RoHS compliance |
Yes |
Packaging DetailsInner packing: pp bag or as per request
Outer packing: Export cartons
The quantity in one carton : Base on the details of products
Usually we packed it in PE bag with 100 pcs. 100 pcs in one carton box
