Product Introduction

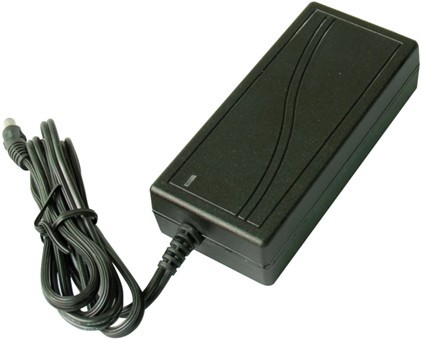

Desktop power adaptor
Input: AC85V~265V;
Output: DC12V；
CCC, CE, UL standard manufacturing
IC design；Over current\Over load\short circuit\over voltage\overheating protection; surge suppressor
Dimension: 124*55*30mm
Model
AD1205S
Output
DC voltage
13.8V
Voltage tolerance
±1%
Rated current
5.0A
Current range
0~5A
Rated power
60W
Ripple&noise
10mvp-p
DCvoltage ADJ.range
10.3~14.2V
input
Voltage range
85~264VAC
frequency
47~63HZ
AC current
0.22A/115VAC，0.11A/230VAC
efficiency
88%
Inrush current
Cold start current 0.5A/115VAC，1A/230VAC
Leakage current
<0. 1mA/240VAC
protection
Rated output power110%~150% start over load
Over load
protection
protection mode：AC charging mode: hiccup mode
Working temp,humidity
-10℃~+60℃，20%~90%RH
environment
Storagetemp,humidity
-20℃~+85℃，10%~95%RH non-condensing
safety
Withstand vibration
10~500HZ，2G 10min/1cycle，period for 60
minutes，each axes
Withstand voltage
I/P-O/P：3KVAC I/P-FG：1.5KVAC O/P-FG：
0.5KVAC
Fitstandard
Isolated resistance
I/P-O/P,I/P-FG,O/P-FG：100M ohms/500VDC
Safety standard
Compliance to UL60950-1
EMC standard
Compliance to EN55022，CLASSB
others
Dimension
124*55*30mm (L*W*H)
Weight/packing
(0.256kg/pcs)/100pcs/27.9kg/0.069m³/
