Product Introduction

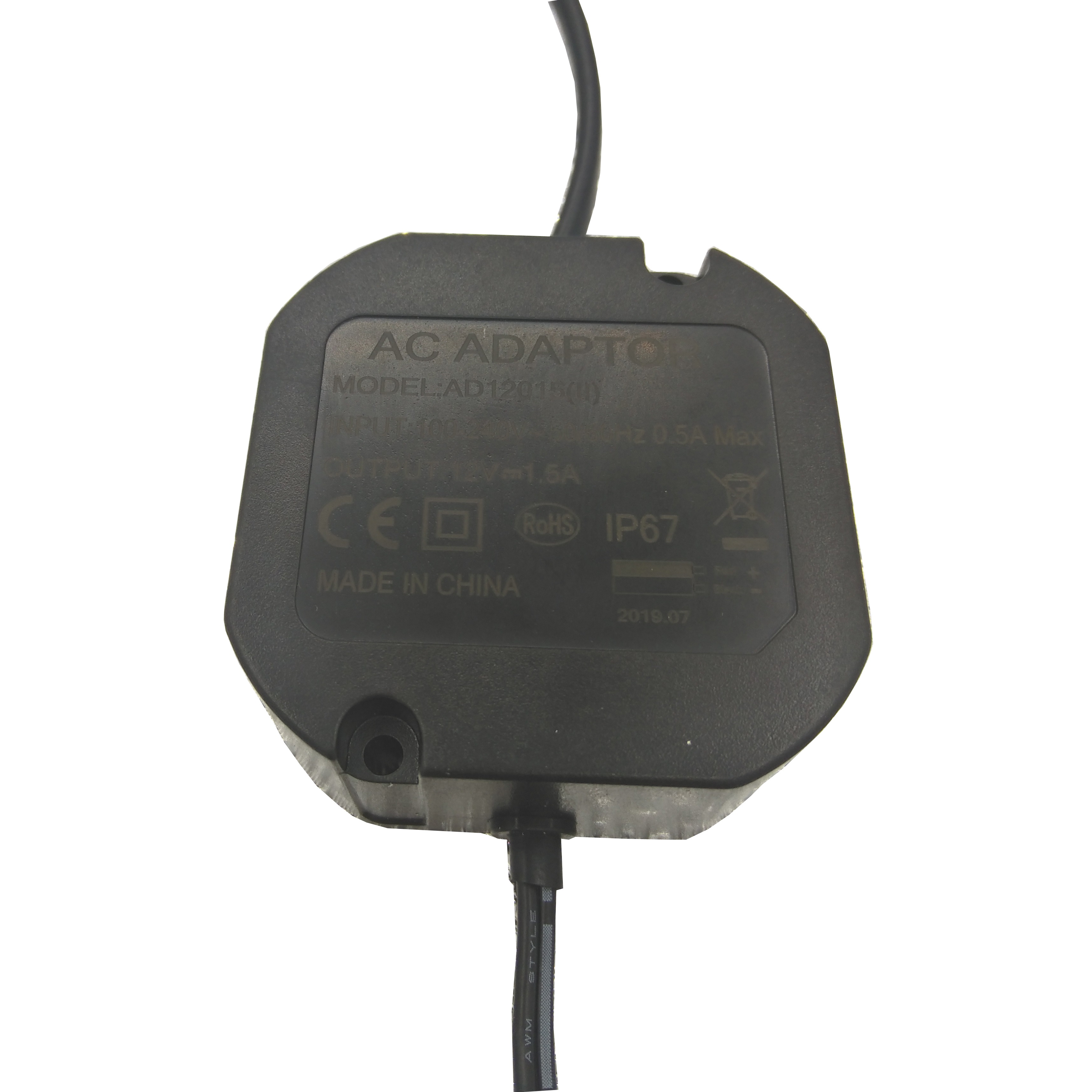

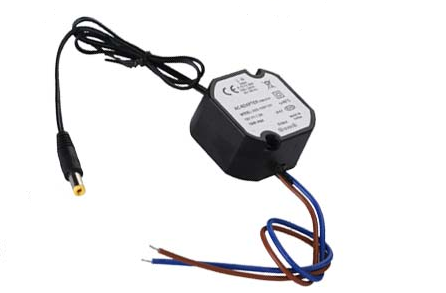

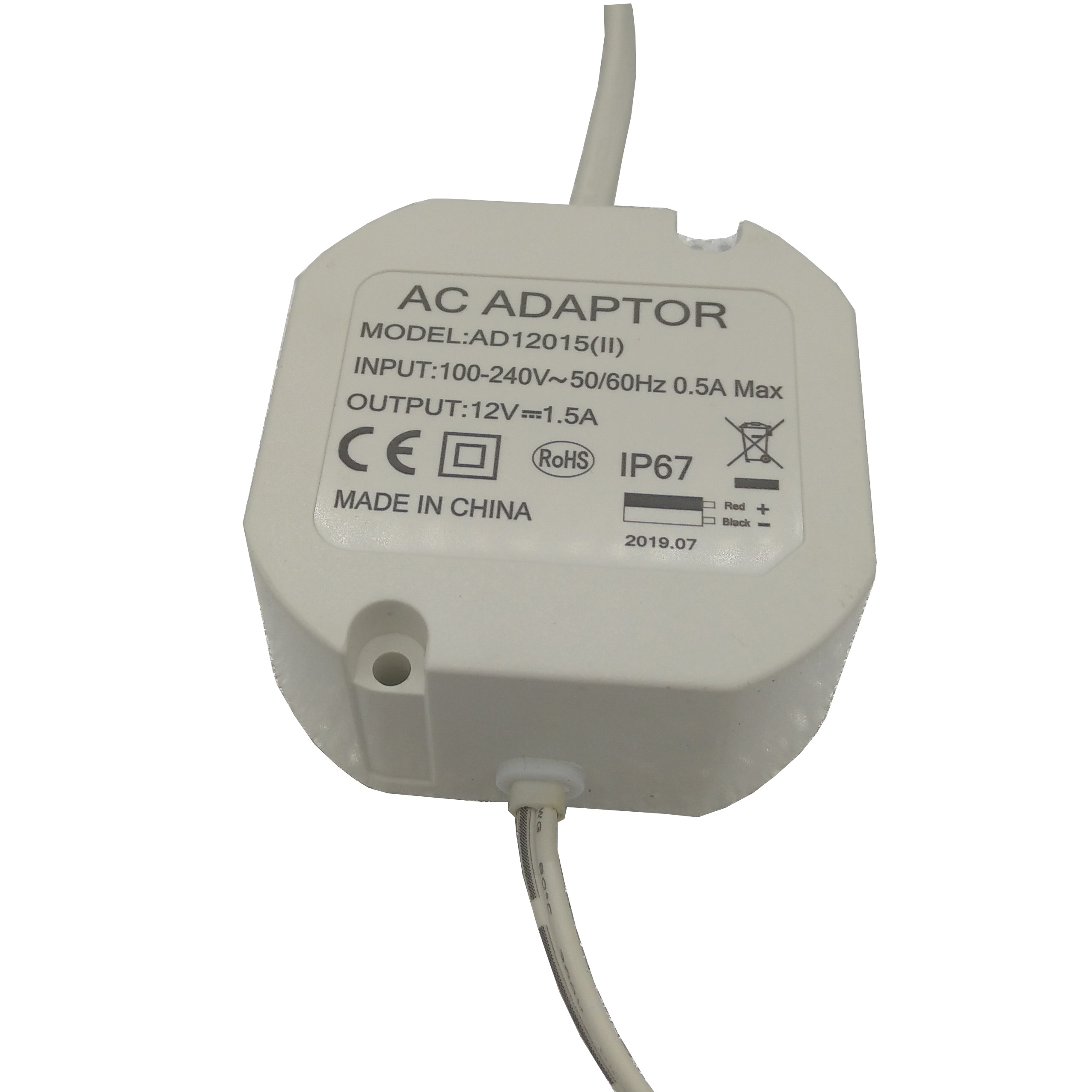

Waterproof Power Adaptor IP67
Input: AC85V~265V;
Output: DC12V；
CCC, CE, UL standard manufacturing
IC design；Over current\Over load\short circuit\over voltage\overheating protection; surge suppressor
Dimension: 61*59*30mm
Model

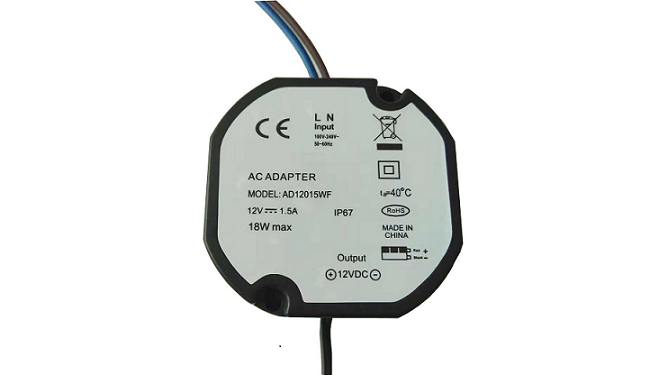

AD12015WF
Output
DC voltage
13.2V
Voltage tolerance
±1%
Rated current
1.5A
Current range
0~1.5A
Rated power
18W
Ripple&noise
10mvp-p
DC voltage
13.2V
input
Voltage range
85~264VAC
frequency
47~63HZ
AC current
0.22A/115VAC，0.11A/230VAC
efficiency
82%
Inrush current
Cold start current 0.5A/115VAC，1A/230VAC
Leakage current
<0. 1mA/240VAC
protection
Rated output power110%~150% start over load
Over load
protection
protection mode：AC charging mode: hiccup mode
Working temp,humidity
-10℃~+60℃，20%~90%RH
environment
Storagetemp,humidity
-20℃~+85℃，10%~95%RH non-condensing
safety
Withstand vibration
10~500HZ，2G 10min/1cycle，period for 60
minutes，each axes
Withstand voltage
I/P-O/P：3KVAC I/P-FG：1.5KVAC O/P-FG：
0.5KVAC
Fitstandard
Isolated resistance
I/P-O/P,I/P-FG,O/P-FG：100M ohms/500VDC
Safety standard
Compliance to UL60950-1
EMC standard
Compliance to EN55022，CLASSB
others
Dimension
61*59*30mm (L*W*H)
Weight/packing
0.17kg/100pcs/18.6kg/0.033m³/
|
Model |
AD1201WF |
AD12015WF |
AD1202WF |
|
Output |
DC12V/1A |
DC12V/1.5A |
DC12V/2A |
|
Input |
AC100~240V |
AC100~240V |
AC100~240V |
|
Frequency |
50~60Hz |
50~60Hz |
50~60Hz |
|
Wattage |
12W |
18W |
24W |
|
Dimension |
50*48*25mm |
61*59*30mm |
61*59*30mm |
