Product Introduction

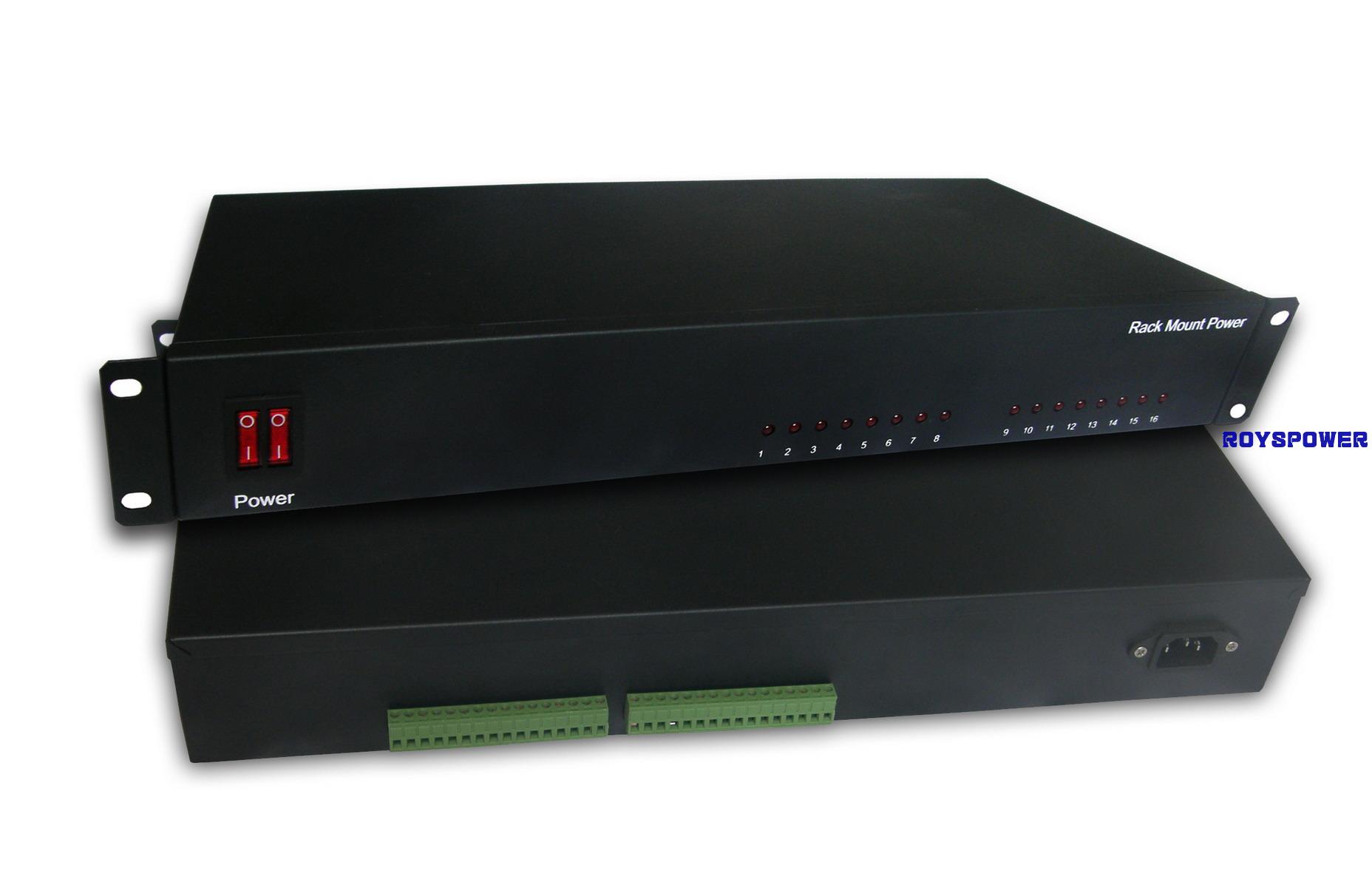

16 PORT 12VDC RACK MOUNT 20A POWER SUPPLY
Model: OW-AP1216-30R
FEATURE
l 16 port 12VDC output.
l Totally 30A output
l 19"x 1.5U rack mounting case.
l AC100V-240V input
Caution: connect only one device to one port, never connect one device to two different ports, or it will lose protection. (see below drawing)
SPECIFICATION:
|
Port |
16 |
|
Output Voltage |
DC 12V |
|
Output Current |
Totally 20A |
|
Fuse Type |
PTC |
|
Max.Amp |
2.35A/Channel |
|
DIMENSIONS L ×W×H mm |
520×225×87 |
|
WEIGHT kg. |
2．63 |
|
STORAGE TEMPERATURE |
-30℃~70℃ |
|
OPERATION TEMPERATURE |
-10℃~45℃ |
