Product Introduction

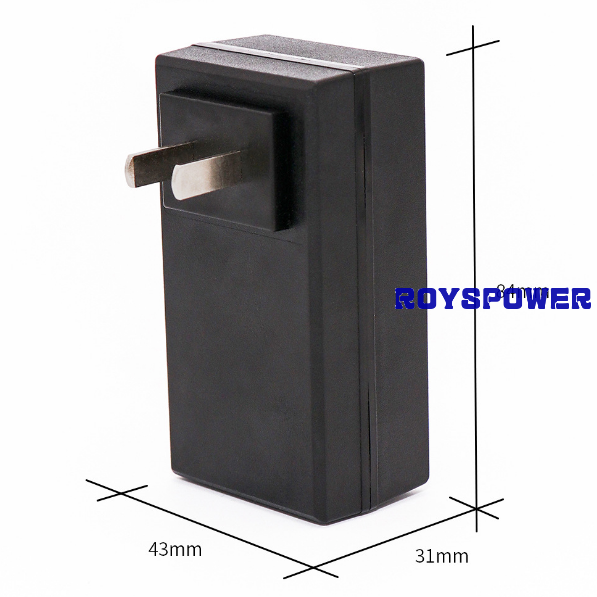

Wall Plug POE Injector Ethernet Adapter 24v 2a 12v 4a 48v 0.5a 1a Poe Power Adapter
|
Model: |
POE15008D |
|
Input Rated Voltage : |
100Vac~240Vac |
|
Input Frequency Range: |
47Hz~63Hz |
|
Input Inrush Current : |
1.3A max |
|
Efficiency : |
85%(MIN)at Rated Voltage |
|
Output: |
48V 0.5A |
|
Output power : |
24W |
|
Ripple and Noise : |
<120Mv at full road with 20MHz bandwidth |
|
Turn On Delay Time: |
<3S (AC:110V and full load) |
|
Safety protection : |
over voltage and current protection for power adapter |
|
Leakage Current: |
<5mA |
|
DC cable length: |
1.5 meters |
|
Operating Temperature: |
0°C----+60°C |
|
Storage Temperature: |
-20°C----+85°C |
|
Certificate: |
CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK |
|
Safety Standard : |
EN60950-1 UL60950-1 ESD (EN61000 3-3) |
|
Data connector |

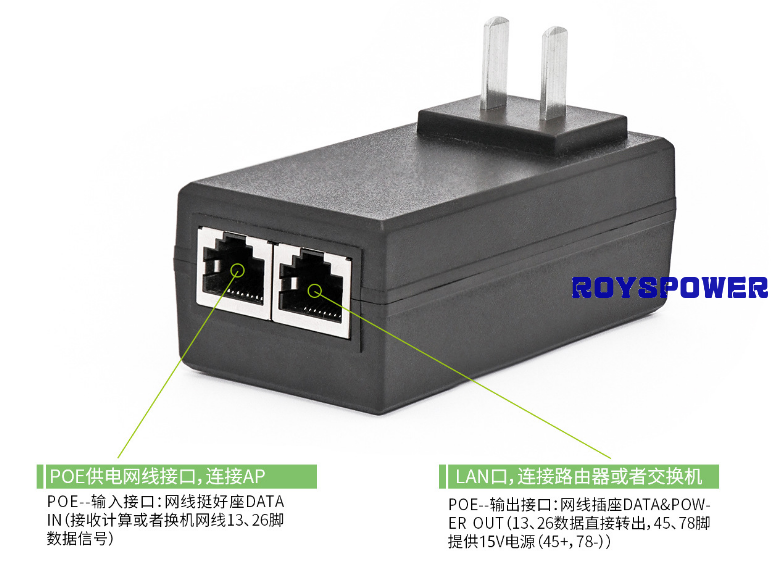

RJ45 +24V pins4&5, Power Return pins7&8 |
|
Futures: |
Compliant with Isolation and Channel |
|
Application: |
IP Telephones, Wireless Network Access Points, Blue Tooth Access Point IP Print Servers, Security Camera etc… |
DC 12V 2A 24V 1A 48V 0.5V Dual Ports POE Power Supply with efficiency VI
Product Description
What is the application of POE power supply?
1. IP Telephones;
2. Security Cameras;
3. WiMax Access Points;
4. LCD Displays;
5. Kiosks;
6. Wireless Network Access Points;
7. IP Print Servers;
8. Blue Tooth Access Points.
Usage:
The PoE power Injector (PoE power supply) can save you money by using an existing Ethernet line to deliver data and power.
The PoE power Injector (PoE power supply) can easily connect any IEEE 802.3af-compliant device to a non-PoE LAN switch port. This PoE Injector can be used to connect a wireless access point, IP phone, network camera, or any IEEE 802.3af powered device to a LAN switch.
Reduce Wiring Costs
With the PoE power Injector (PoE power supply) you can dramatically reduce wiring costs by powering devices through your existing Ethernet line rather than running new AC power lines. To use this product all you need to do is connect the PoE Injector to the LAN switch port, and then use your existing Ethernet Cable to deliver DC power and data to your device.
Protect Your Equipment
Now that you are running DC power to your networked equipment through the Cat5 cabling, you need to be sure that your devices are protected from power problems The PoE Injector is equipped with short circuit protection keeping your devices safe
