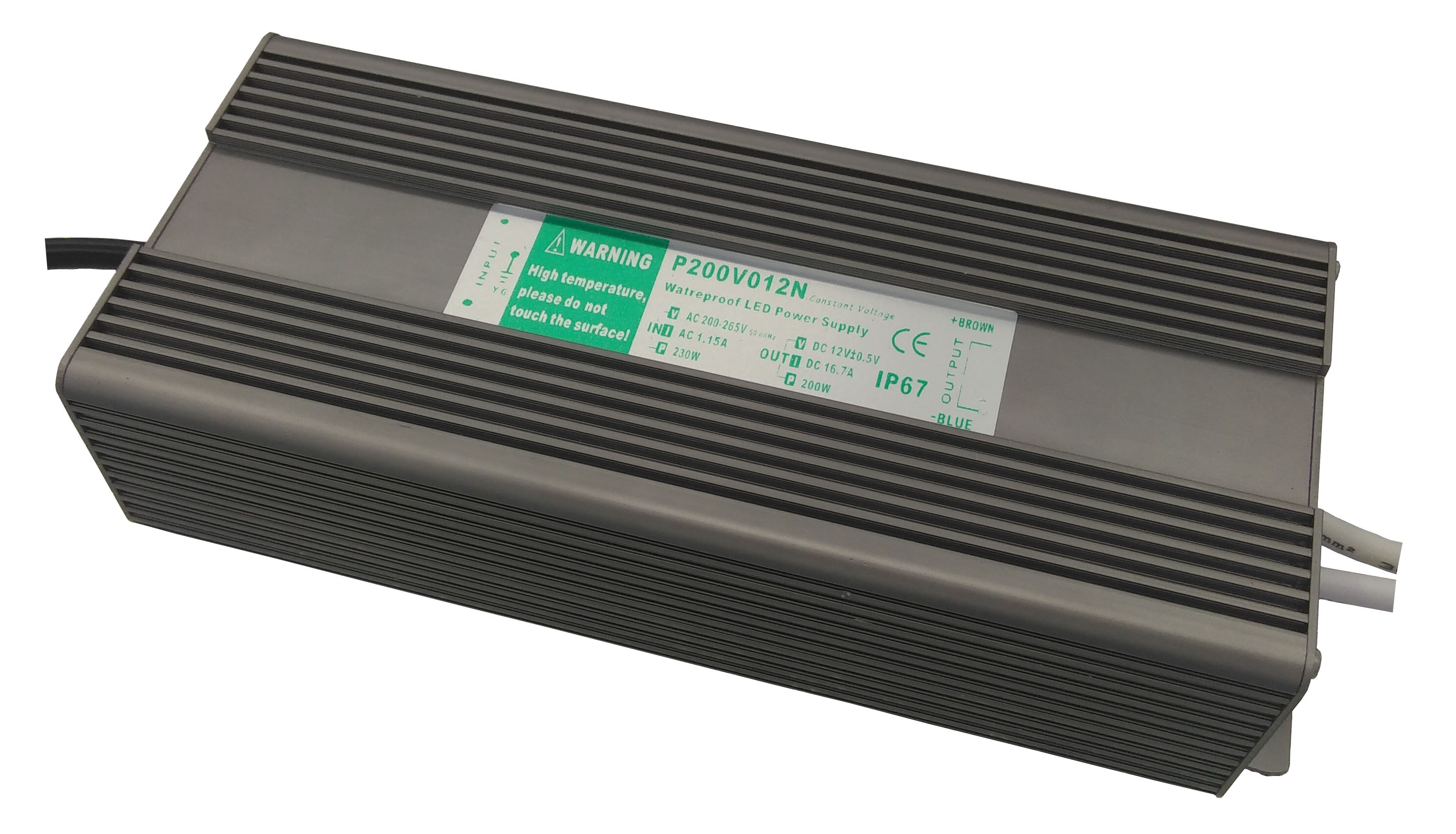

Product Introduction
Main Model: 12V200W
Wattage : 200W
Input: 170~260VAC
High efficiency up to 86%
Wide working temperature range -55~+70℃(-40~+70℃ for HEP-600, -55~+65℃ for HEP-480)
Rugged metal case with IP67 design (IP68 option available), withstand 10G vibration
Suitable for high/low temperature, high dust, high moisture, high vibration, high salt outdoor or harsh environment
Constant Voltage For Strip Light
Overall dimension(mm): 240*70*40
Weight(Kg): 1.116Kg
|
DC Output |
DC Voltage: 12V |
|
DC Current : 0~16.5A |
|
|
Ripple & Noise: 50MV |
|
|
DC Adjustable Range: ±10% Rated Voltage |
|
|
Voltage Tolerance: ±2.0% |
|
|
Line Regulation: ±0.5% |
|
|
Load Regulation: ±1% |
|
|
Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC |
|
|
AC Input |
AC Voltage Range: 110-260VAC |
|
Frequency Range: 47-63Hz |
|
|
Efficiency:86% |
|
|
AC Current: 0.86/115V 0.4A/230V |
|
|
AC Inrush Current: 20A/115V 40A/230V |
|
|
Leakage Current< 0.5mA /240VAC |
|
|
Protection |
Over-load: 105%-150% hiccup mode,Auto-recovery |
|
Over-voltage: 115%-135% Cut Off the Output,Auto-recovery |
|
|
Over-temp. : Shut down O/P voltage, Auto-recovery |
|
|
Environment |
Working temp.: -10~ +60C° (Refer to output load derating curve) |
|
Working Humidity:20 ~ 90% RH, non-condensing |
|
|
Storage Temp.: -10~ +60C° |
|
|
Storage Humidity: 10 ~ 95% RH |
|
|
Safety |
Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH |
|
Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
|
|
Safety standards: CE,RoHS,FCC,ISO9001 |
Adding Models:
|
Model No. |
Output |
Tol. |
R&N |
Effi. |
|
5V200W |
5V, 0~40A |
±2% |
80mV |
79% |
|
12V200W |
12V, 0~16.5A |
±1% |
80mV |
85% |
|
15V200W |
15V, 0~13.2A |
±1% |
120mV |
86% |
|
24V200W |
24V, 0~8.3A |
±1% |
120mV |
86% |
|
36V200W |
36V, 0~5.5A |
±1% |
120mV |
86% |
|

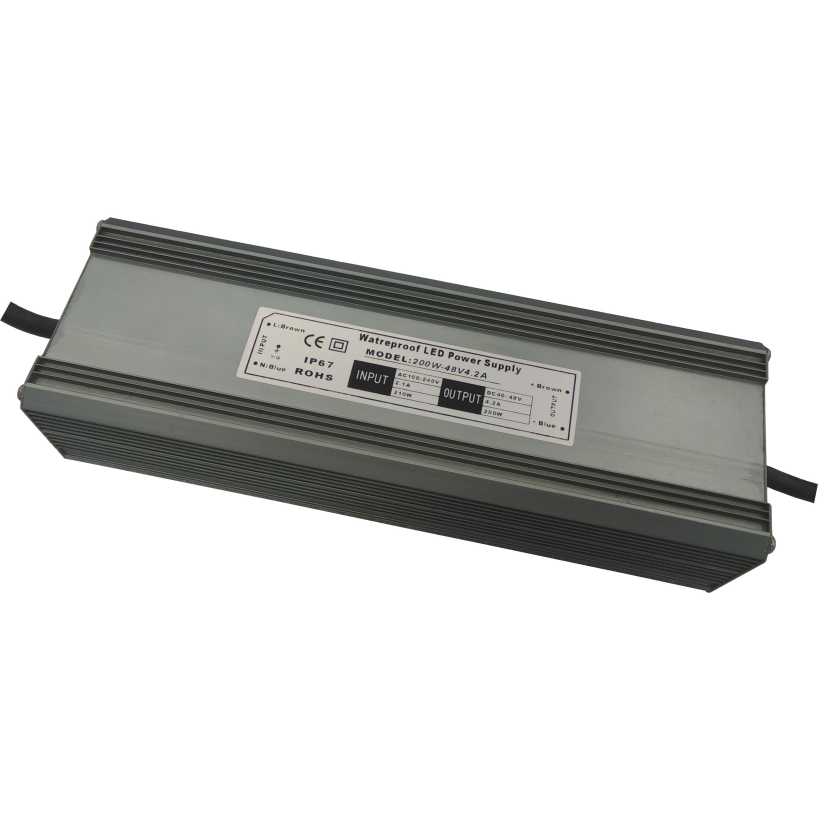

48V200W |
48V, 0~4.2A |
±1% |
200mV |
86% |
