Product Introduction
1.Product Specifications

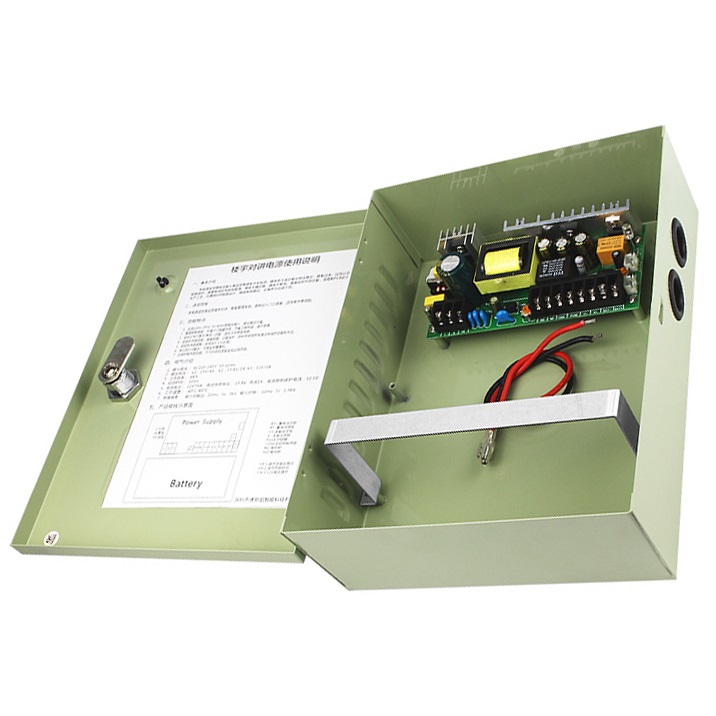

Ups power supply for access control
Model: DC1205M-B
Power input: 220/110VAC
Power output: 12VDC,5A
Control electric locks or bolts directly
Lessen the load of access controller Save project wires
With UPS terminal which can connect with battery
Lower potential trouble
NC/NO output Control all kinds of electric locks
Has delay control circuit
Unlock delay time in 0~10S
Auto protective function
Dimension:230*180*70 mm
|
Dimensions |
230*180*70mm |
|
Input Voltage |
220VAC/110VAC |
|
Output Voltage |
12VDC/5A |
|
Output Contact |
Access control, Electric Lock, Release Button |
|
Time delay |
0~10sec. |
|
Standard Designe |
Steel material, Painted |
|
Protect Safely |
Short Circuit protection |
|
Suitable For |
all kinds of electric locks |
|
Optional |
110VAC input can be customized |

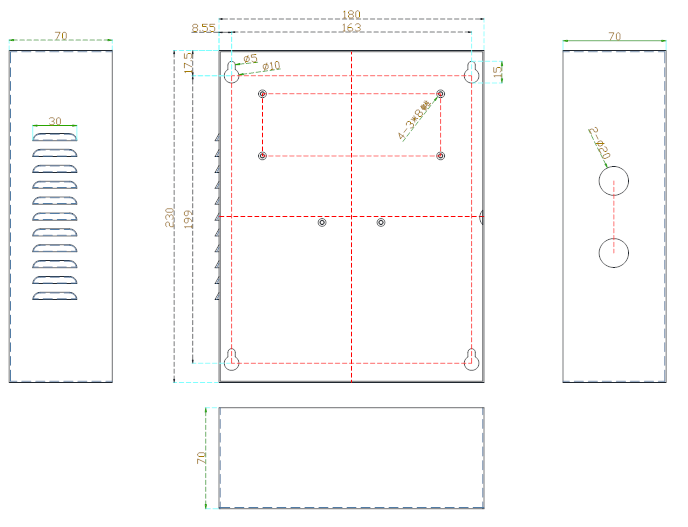

Dimension:
