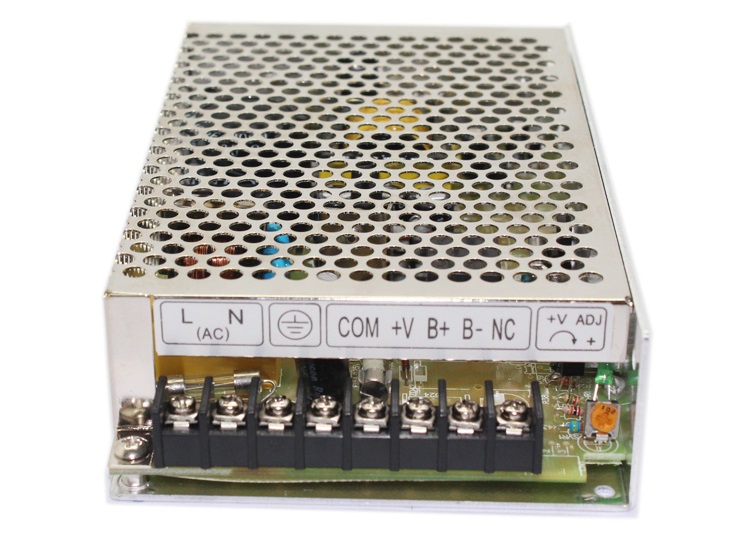

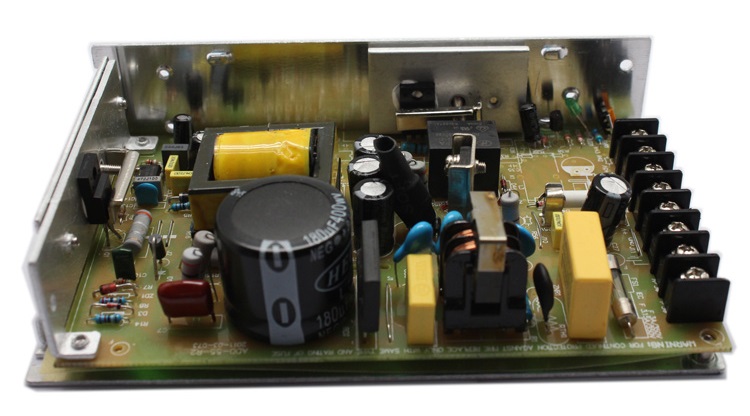

55W Single Output with Battery Charger (UPS Function)
·Universal AC input/full range
·Small volume，low weight，high efficiency
·Protections:short circuit/over load/over voltage
·LED indicator for power on
·Battery protection at low voltage
·100% full load burn-in test
·3 Years warranty
|
Model |
SD-55-12 |
SD-55-24 |
|||
|
Output |
DC voltage |
CH1:13.8V |
CH2:13.4V |
CH1:27.6V |
CH2:26.5V |
|
Voltage tolerance |
±1％ |
----- |
±1％ |
----- |
|
|
Rated current |
3.5A |
0.23A |
1.8A |
0.16A |
|
|
Current range |
0～4.0A |
----- |
0～2A |
----- |
|
|
Rated power |
51.38W |
53.92W |
|||
|
Ripple&Noise |
100mVp-p |
----- |
100mVp-p |
----- |
|
|
DC Voltage ADJ. range |
CH1:11.3～14.9V |
CH1:21.3～29.8V |
|||
|
Setup,Rise,Hold up time |
800ms,50ms,80ms/230VAC.1600ms,50ms,16ms/115VAC. |
||||
|
Input |
Voltage range |
90～264VAC or 127～370VDC |
|||
|
Ac current |
1.6A/115VAC 1A/230VAC |
||||
|
Efficiency |
71% |
74% |
|||
|
Inrush current |
cold start 20A/115VAC 40A/230VAC |
||||
|
Leakage current |
＜1mA/240VAC |
||||
|
Protection |
Over load |
110%～150% Rated output power |
|||
|
Protection type : AC charging mode Hiccup mode,recovers automatically after fault condition is removed ；UPS Mode : Protected by internal fuse |
|||||
|
over voltage |
CH1:15.9～18.8V |
CH1:31.7～37.5V |
|||
|
Protection type : Hiccup mode,recovers automatically after fault condition is removed ； |
|||||
|
Battery low |
9.5～11V |
20～22V |
|||
|
Function |
DC alarm signal(optional) |
AC fail CN1 PIN2 |
|||
|
Battery low under charge voltage 82.5%± 2% CN1 PIN1 |
|||||
|
Normal 0.8V max. Abnormal 5V±0.5V |
|||||
|
Environment |
Working temp,humidity |
-10℃～+60℃;20%～90%RH(Refer to "Deration Curve") |
|||
|
Storage temp,humidity |
-20℃～+85℃;10%～95%RH non-condensing |
||||
|
vibration |
10～500Hz，2G 10min./1cycle，period for 60min，each along X,Y,Z axes |
||||
|
Safety |
Withstand voltage |
I/P-O/P：1.5KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC |
|||
|
Isolation resistance |
I/P-O/P： I/P-FG,O/P-FG：100M Ohms/500VDC |
||||
|
EMC |
Safety standard |
Compliance UL60950-1 |
|||
|
EMC |
Compliance EN55022，EN55024,CLASS B |
||||
|
Others |
Dimension |

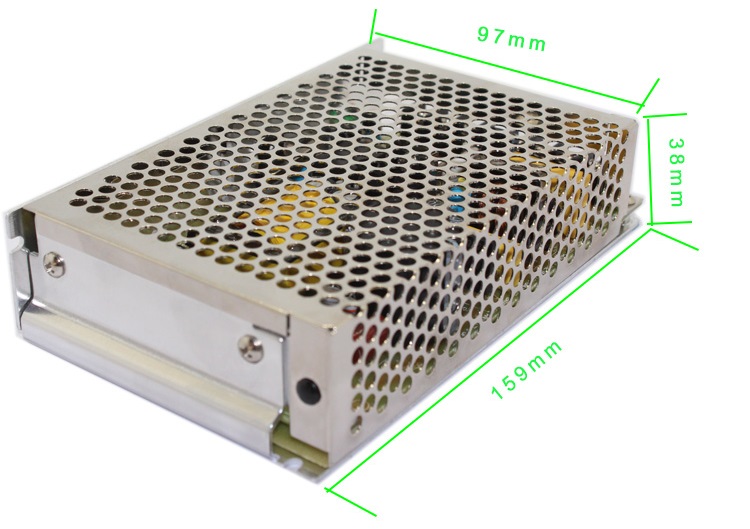

0.52kg 159*97*38mm（L*W*H） |
|||
|
Packing |
0.52kg/45pcs/24kg |
||||
NOTE:
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
