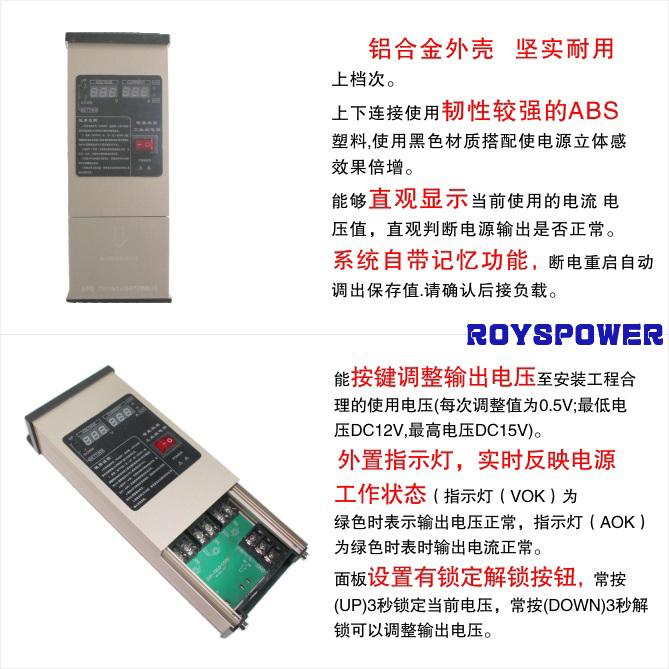

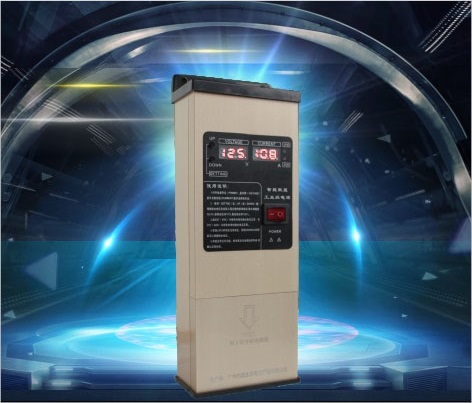

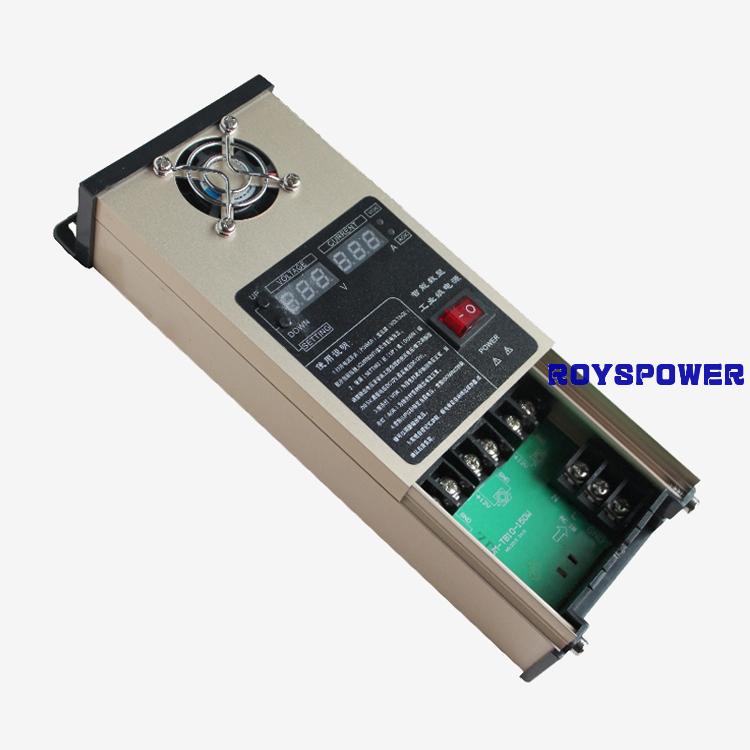

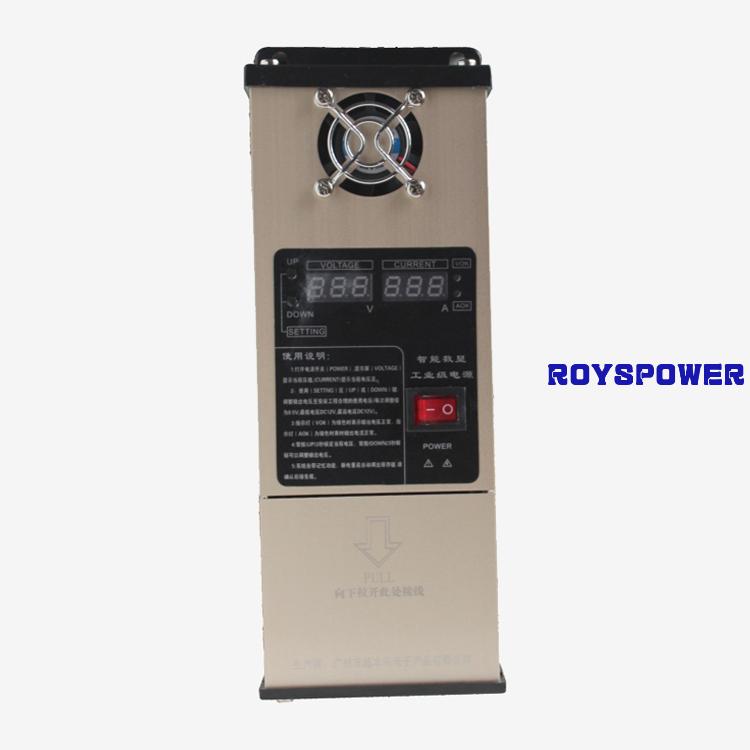

Digital Display Power
Voltage can be adjusted (DC12V-15V)
Input: AC100~240V
Output: 75W
|
Model |
S-75W-ID |
|
|
|
|
Output |
DC output voltage |
12V |
|
|
|
Output voltage tolerance |
±1% |
|
|
|
|
Rated output current |
3A |
|
|
|
|
Output current |
0~6.5A |
|
|
|
|
Output power |
75W |
|
|
|
|
Ripple and noise |
100mVp-p |
|
|
|
|
DC adjustable range |
±10% |
|
|
|
|
Setup rise hold up time |
200ms,50ms,20ms |
|||
|
Input |
Input voltage range |
100~240VAC 47~63Hz |
||
|
|
|
|||
|
Efficiency |
83% |
|
|
|
|
|
|
|||
|
Leakage current |
<3.5mA/240VAC |
|||
|
Protection characteristic |
Over load protection |
105%~135%rated output power start the over load protection |
||
|
Protection mode : cut off the output,auto-recovery |
||||
|
Over-voltage protection |
115%-135% cut off the output,auto-recovery |
|||
|
Over-temp protection |
Rectifier≥80℃cut off the output ,auto-recovery |
|||
|
Fan ON/OFF control |
≥55℃ Fan start ,≤45℃Fan off |
|||
|
Environment |
Working temperature |
-10℃~+60℃;20%~90%RH(please refer to the Load deduction curve) |
||
|
Security |
Withstand voltage |
Between input and output::1.5KVAC The input and ground : 1.5KVAC The output and ground :0.5KVAC |
||
|
Insulation resistance |
Between input and output: The input and ground, the output and ground: 100M 0hms /500VDC |
|||
|
|
Dimensions |
230*85*46mm |
||
|
Others |
Weight/Packing |
0.45kg |
||
